Windshield Washer Pump: Service and Repair

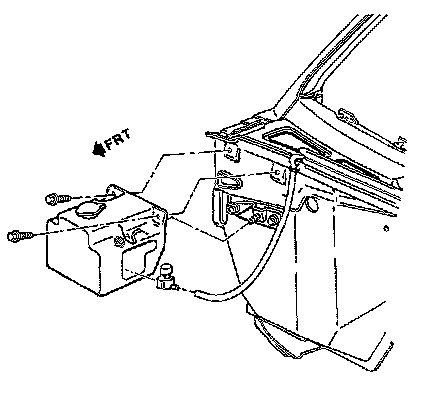

Washer Pump/Reservoir Replacement

Removal Procedure




1. Remove the electrical connector from the washer pump.
2. Disconnect the hose from the washer pump.
3. Remove the two screws and the nut from the container.
4. Remove the solvent container from the vehicle.
5. Remove the washer pump from the solvent container.

Installation Procedure




1. Install the washer pump to the solvent container.
2. Install the solvent container onto the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the two screws and the nut.

* Tighten the screws to 10 Nm (89 lb in).
* Tighten the nut to 8 Nm (71 lb in).

4. Connect the hose to the washer pump.
5. Install the electrical connector to the washer pump.
