Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2001
>>
Express 1 Ton Van V8-5.7L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Relay
Ignition Relay

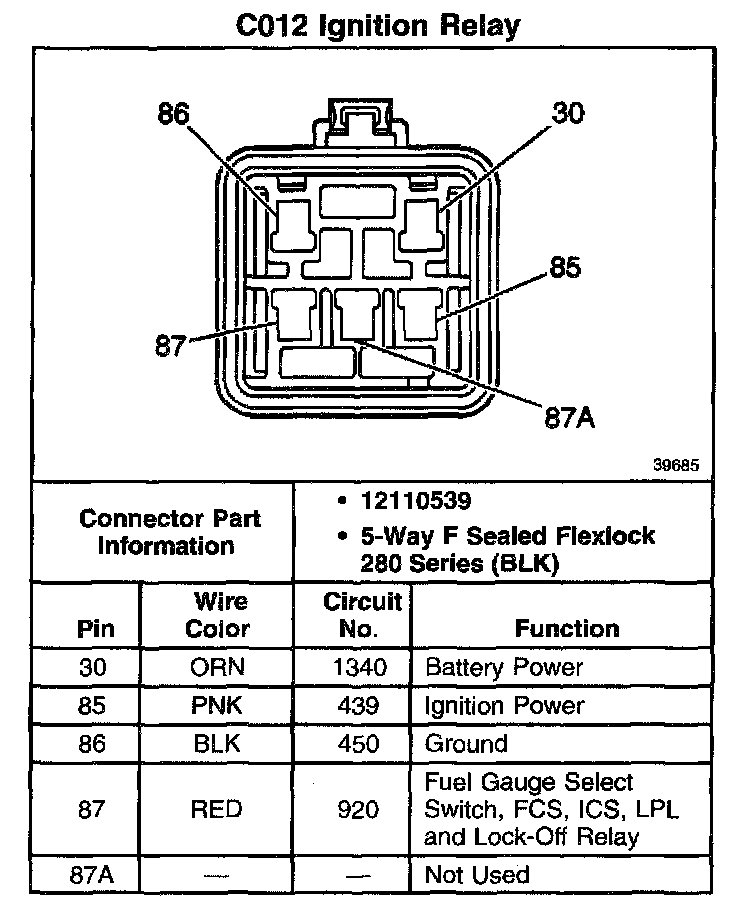

C012 Ignition Relay - BI-Fuel/Alternative Fuels:
