Engine Harness Wiring, Right Side
Engine Harness Wiring, Right Side

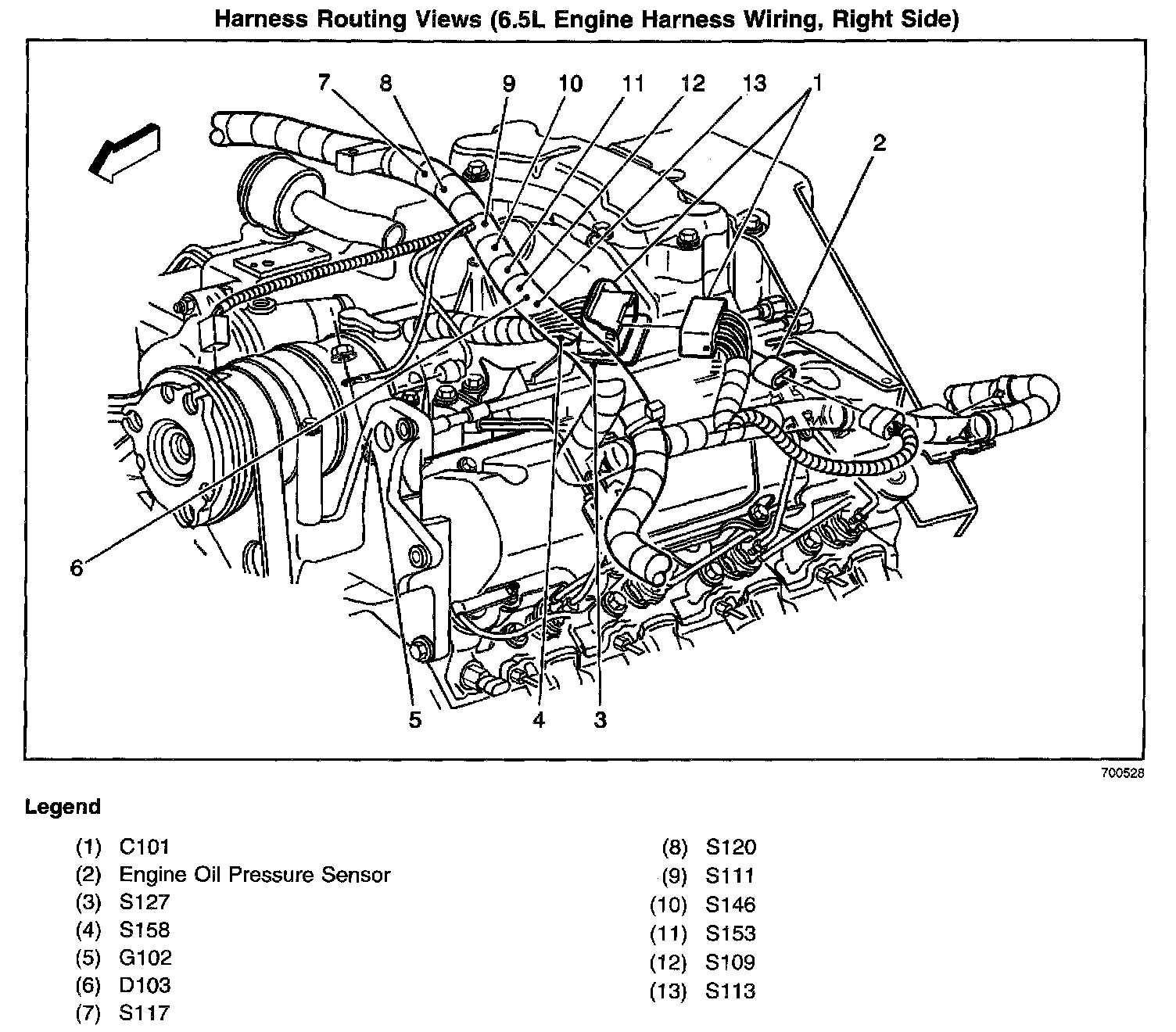

Harness Routing Views (Engine Harness Wiring, Right Side):
