Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

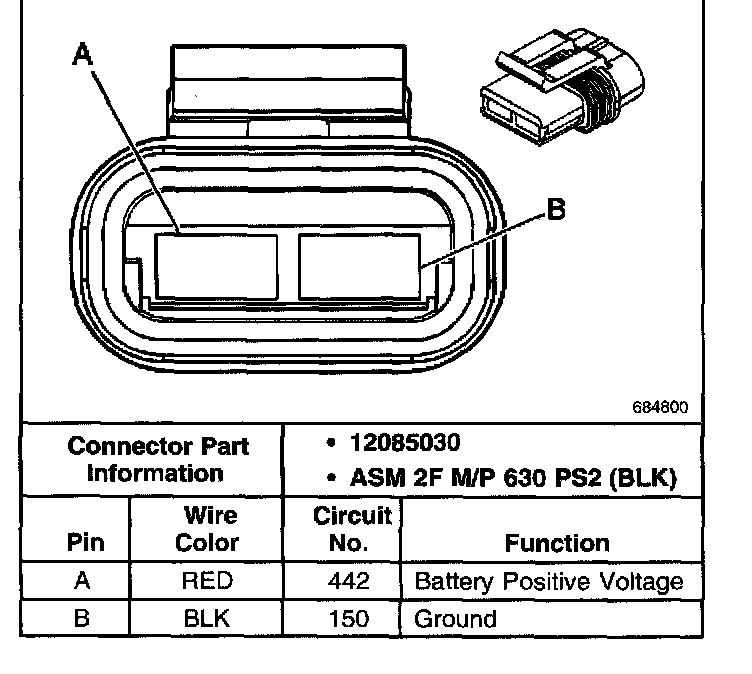

EBCM
, Connector C350

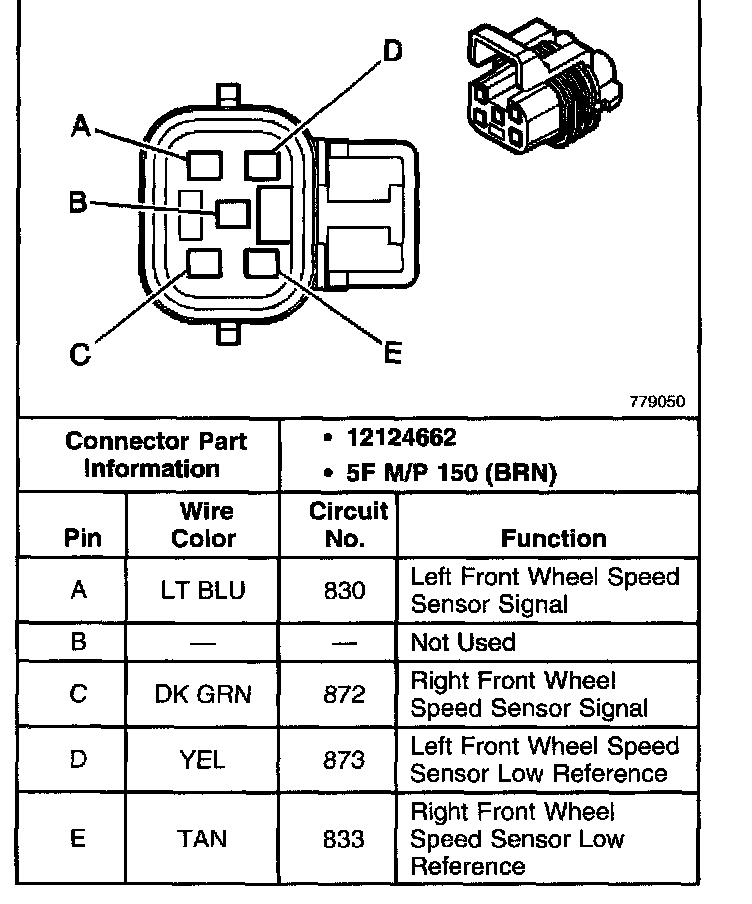

EBCM
, Connector C2

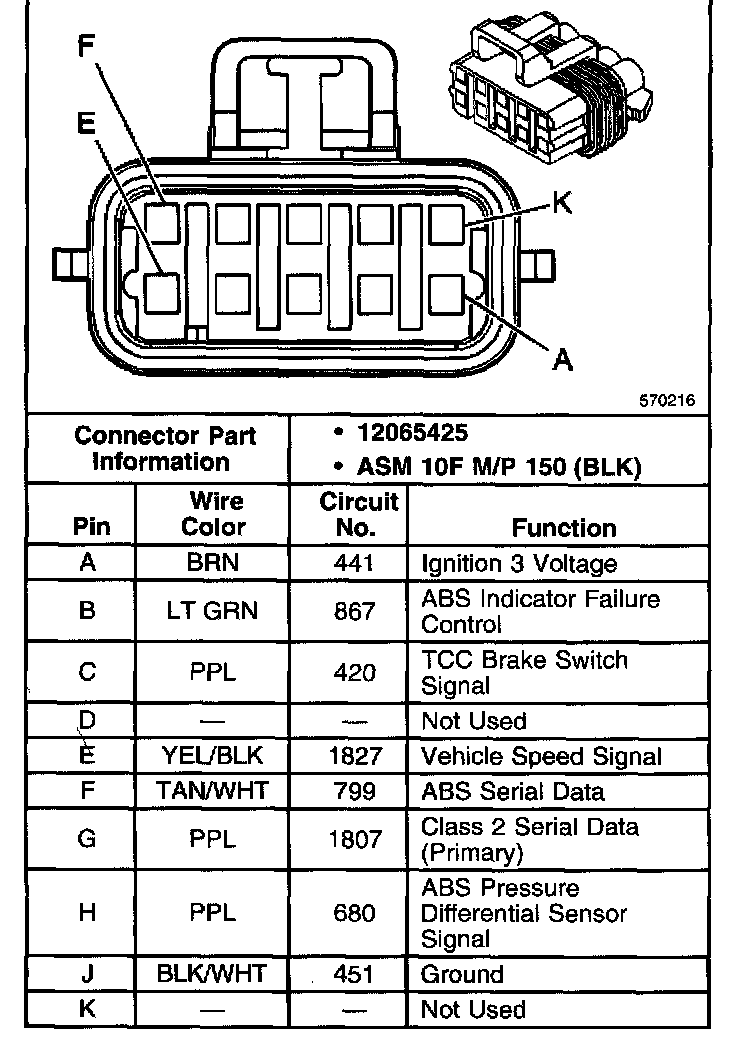

EBCM
, Connector C3
