I/P Fuse Block, Power Door Lock Switch, VIM

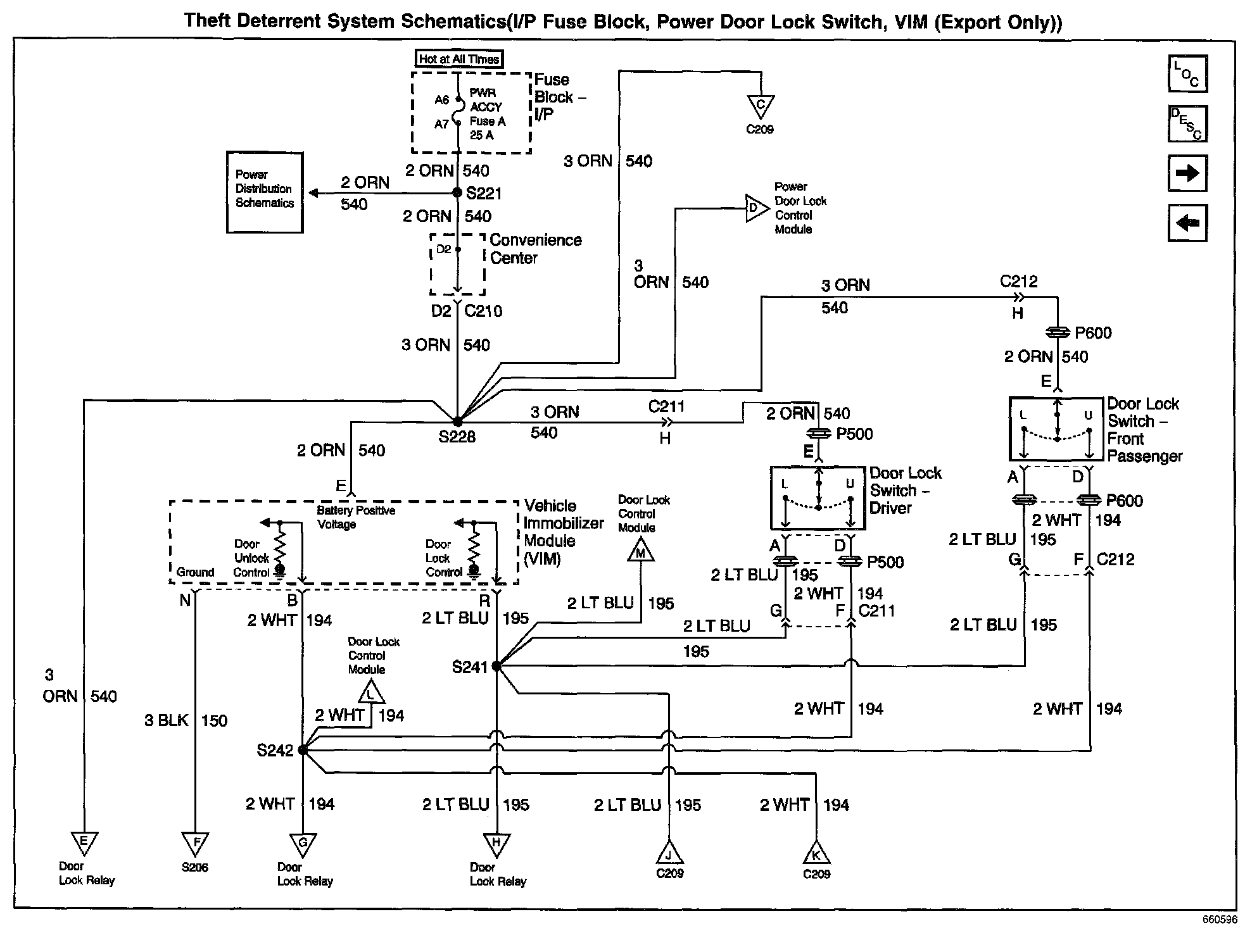

Theft Deterrent System Schematics: I/P Fuse Block, Power Door Lock Switch, VIM (Export Only):
