Rear AUX Mode Valve & Seal Assembly, Rear AUX Temperature Valve Assembly, G400

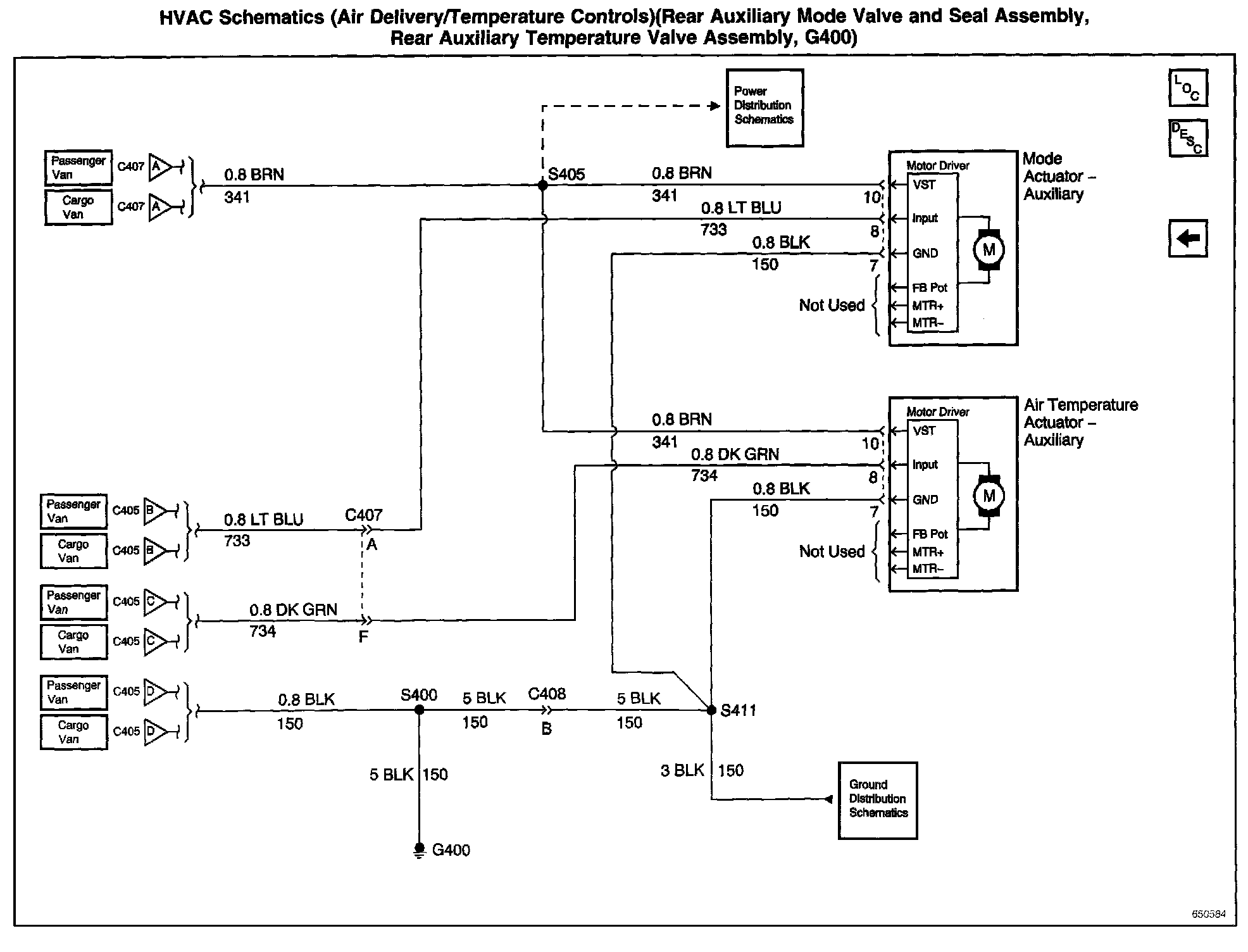

HVAC Schematics: Air Delivery/Temperature Controls (Rear Auxiliary Mode Valve And Seal Assembly, Rear Auxiliary Temperature Valve Assembly, G400):
