HDLP SW, Instrument Cluster, Park/Neutral Position Switch

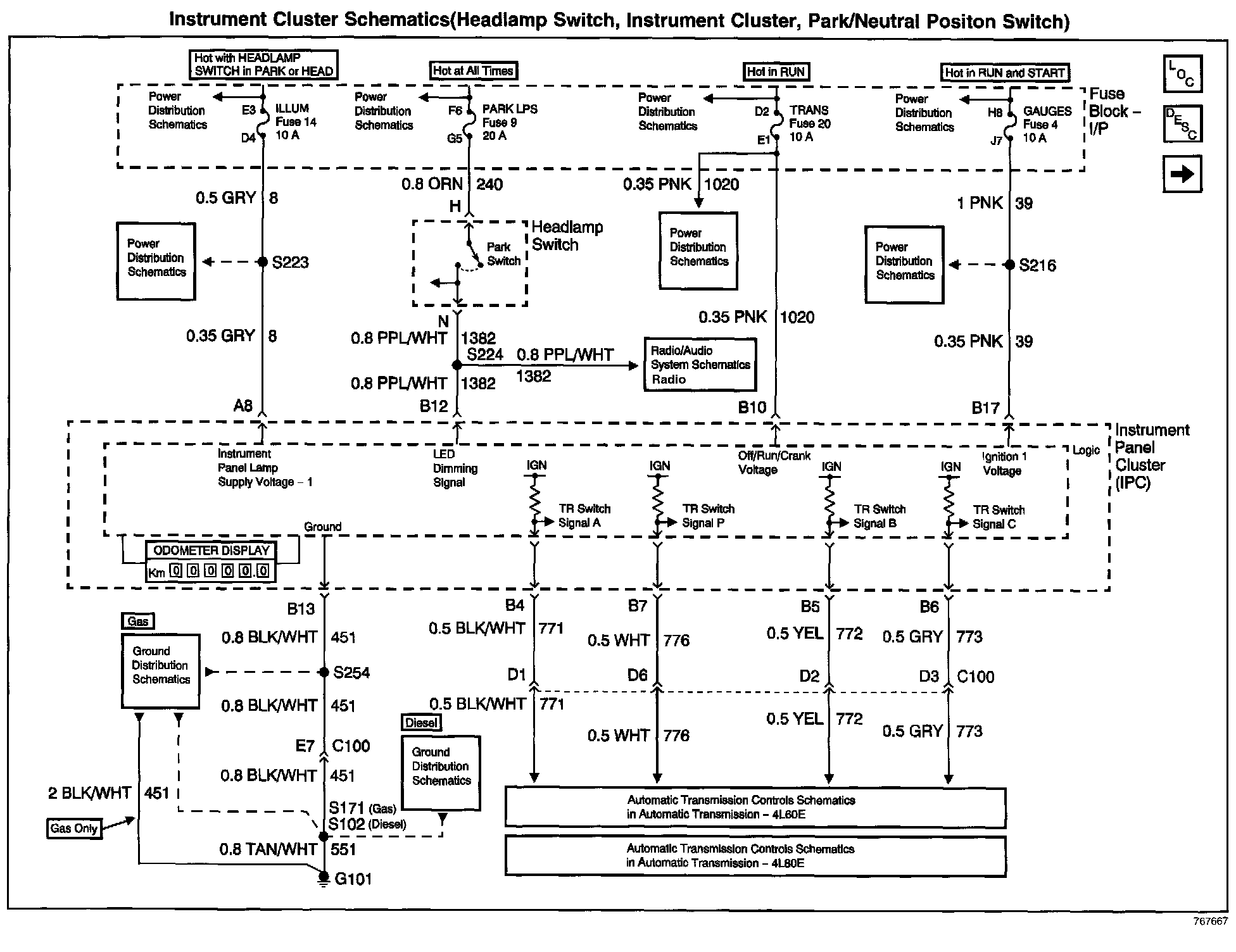

Instrument Cluster Schematics: Headlamp Switch, Instrument Cluster, Park/Neutral Position Switch):
