Chevy Truck
>>
2001
>>
Express 1 Ton Van V8-8.1L VIN G
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Standard Models (Non-Alternative Fuels)
Standard Models (Non-Alternative Fuels)

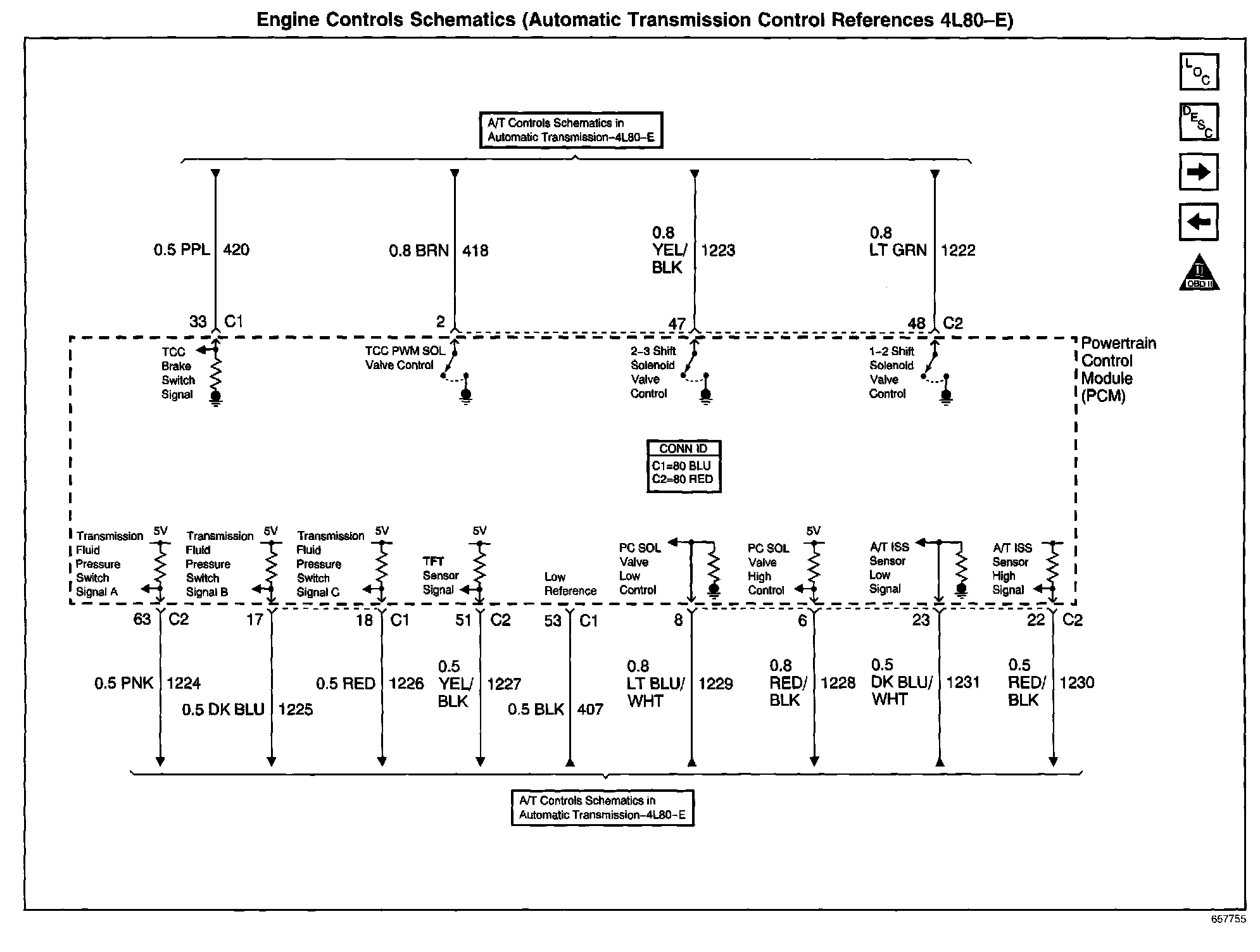

Engine Controls Schematics: Automatic Transmission Control References 4L80-E:
