Home >> Chevy Truck >> 2001 >> Express 1 Ton Van V8-8.1L VIN G >> Repair and Diagnosis >> Specifications >> Pressure, Vacuum and Temperature Specifications >> Automatic Transmission/Transaxle >> 4L80-E/4L85-E Automatic Transmission >> TFP Manual Valve Position Switch Logic (Diesel)

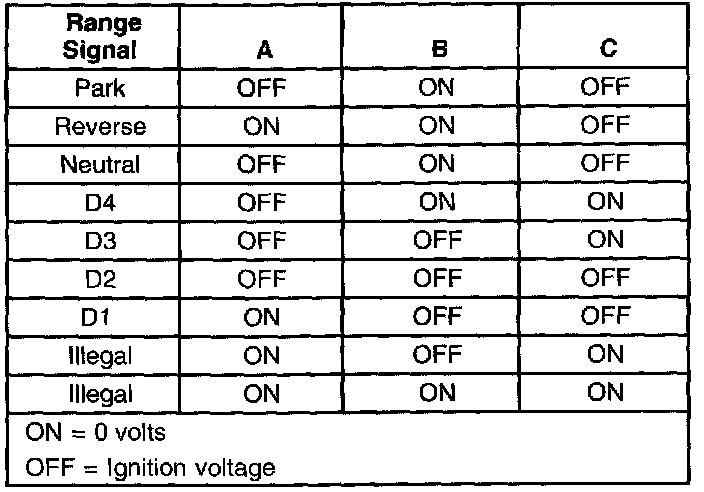

TFP Manual Valve Position Switch Logic (Diesel)
