Shift Lever - Disassemble

Shift Lever - Disassemble - Off Vehicle

Caution: Refer SIR Caution in Service Precautions.





1. Disable the inflatable restraint steering wheel module. Refer to Disabling the SIR System in Restraint Systems.
2. Remove the upper and lower trim covers.

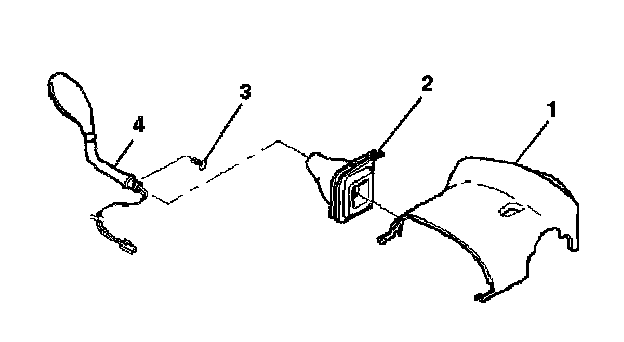

3. Move the shift lever seal (2) up the shift lever (4).
4. Remove the shift lever screw (3).
5. Remove the shift lever assembly (4).
6. Remove the shift lever seal (2) from the shift lever assembly (4).
