Tilt Spring - Assemble

Tilt Spring - Assemble - Off Vehicle

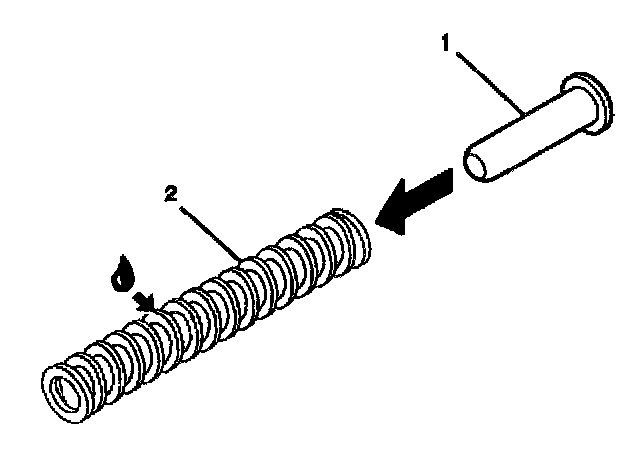

1. Lubricate the tilt spring (2) with synthetic grease.
2. Install the spring guide (1) into the tilt spring (2).

Caution: Refer to Tilt Spring Caution in Service Precautions.





3. Install the tilt spring (1).

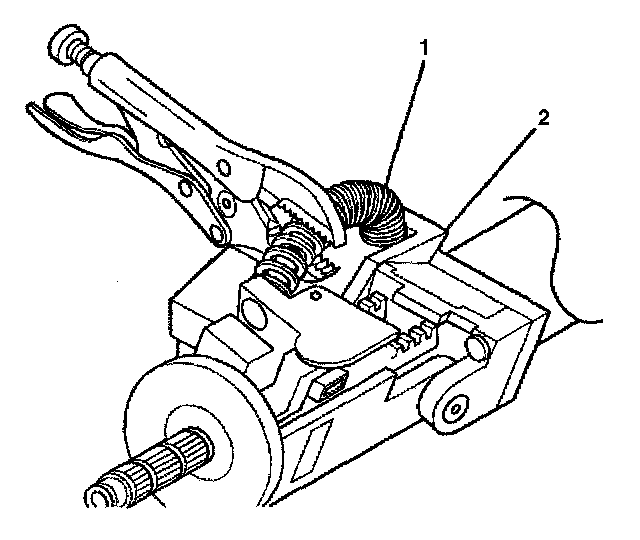

3.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
3.2. Secure the tilt spring (1) with locking pliers.

Notice: Refer to Improper Routing of the Wire Harness Notice in Service Precautions.

4. Install the upper and lower trim covers.
5. Enable the inflatable restraint steering wheel module. Refer to Enabling the SIR System in Restraint Systems
