Tilt Spring - Disassemble

Tilt Spring - Disassemble - Off Vehicle

Caution: Refer to SIR Caution in Service Precautions.





1. Disable the inflatable restraint steering wheel module. Refer to Disabling the SIR System in Restraint Systems.
2. Remove the upper and lower trim covers.

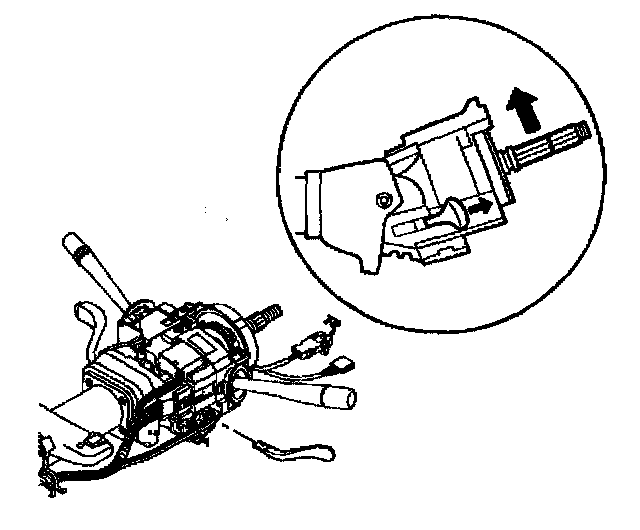

3. Use the tilt lever to tilt the column to the UP position.

Caution: Refer to Tilt Spring Caution in Service Precautions.

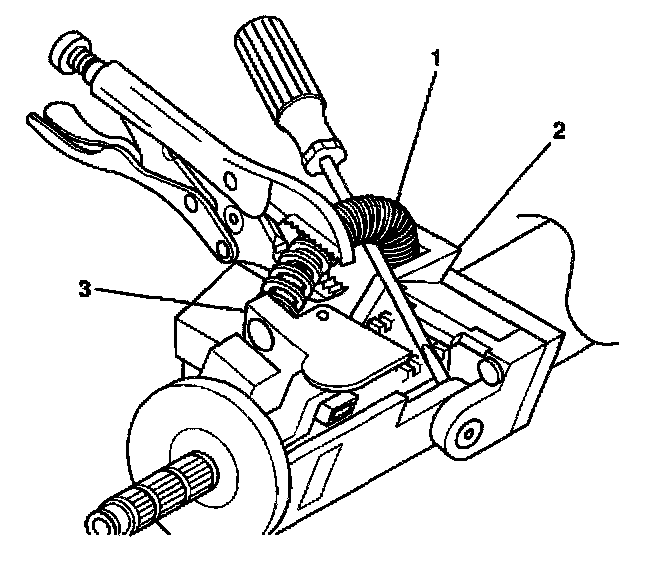

4. Remove the tilt spring (1) in the following manner:
4.1. Pry the tilt spring up until a bulge occurs and most of the tilt spring tension is removed.
4.2. Secure the tilt spring with locking pliers and continue prying until the tilt spring disengages from the post of the steering column support assembly (3).





5. Remove the spring guide (1) from the tilt spring (2).
