Oxygen Sensor
>>
Bank 1 Sensor 1
Bank 1 Sensor 1

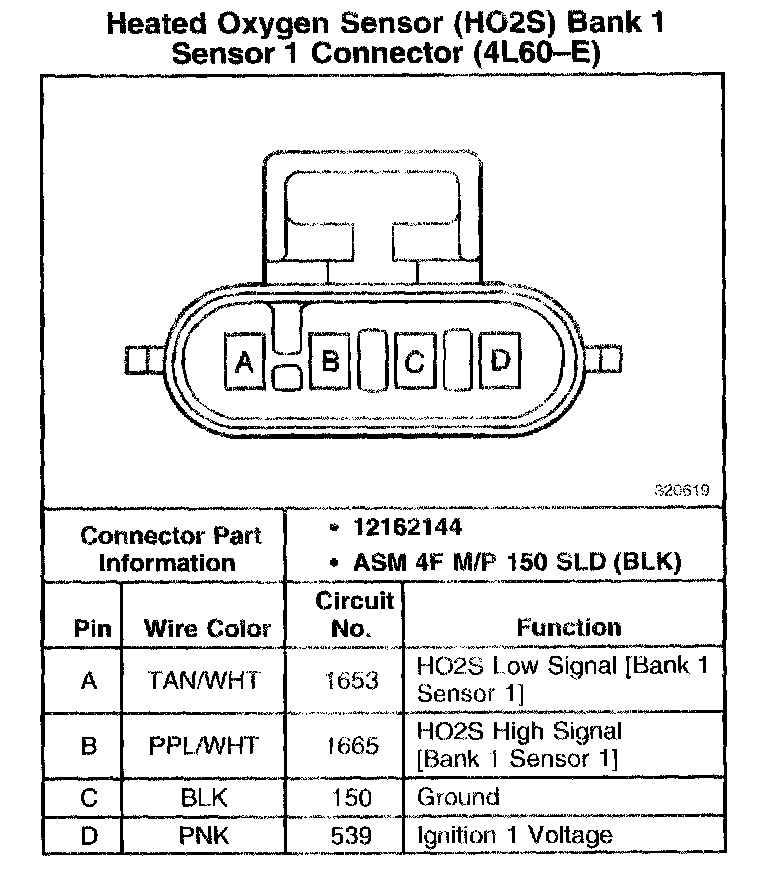

Heated Oxygen Sensor (H2OS) Bank 1 Sensor 1 Connector (4L60-E):

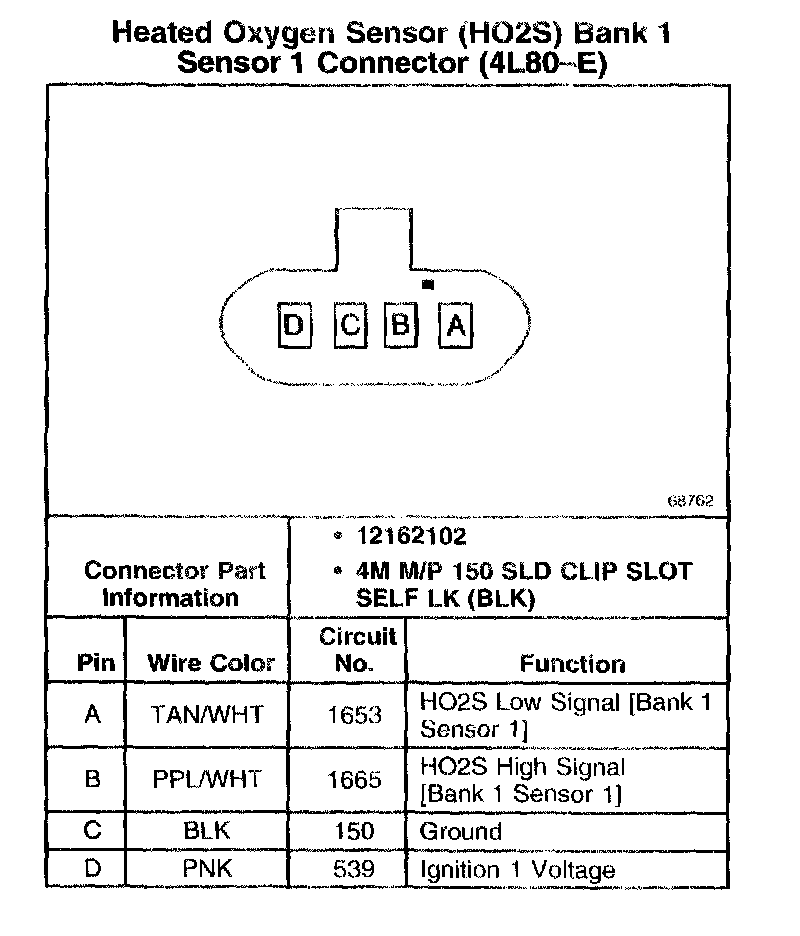

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 Connector (4L80-E):
