Home
>>
Chevy Truck
>>
2001
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Air Door
>>
Diagrams
>>

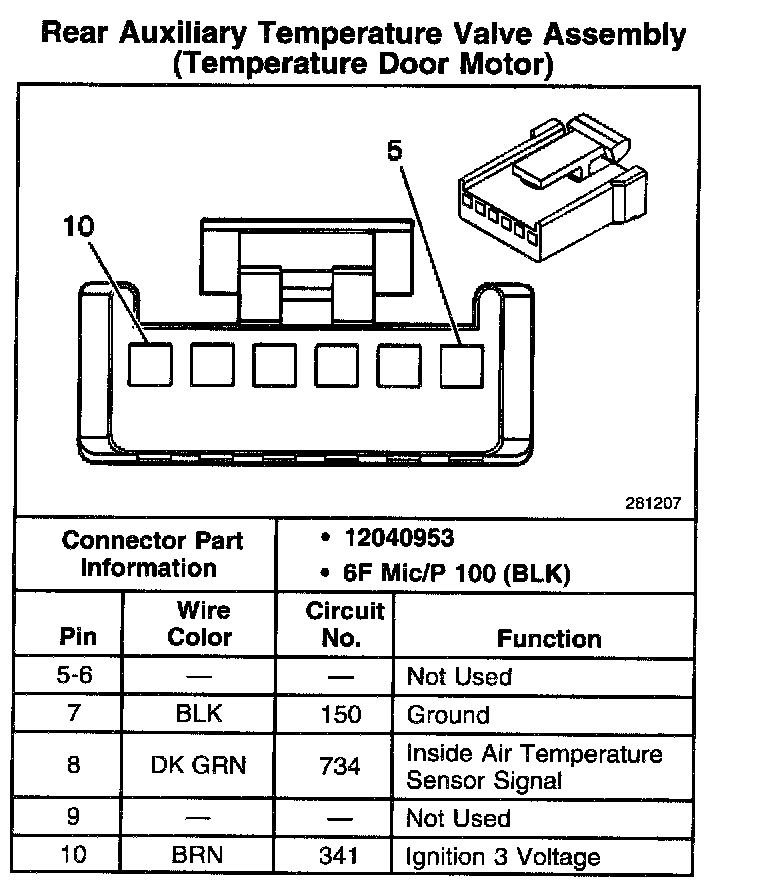

Rear Auxiliary Temperature Valve Assembly (Temperature Door Motor)
Rear Auxiliary Temperature Valve Assembly (Temperature Door Motor)
Rear Auxiliary Temperature Valve Assembly (Temperature Door Motor):
