Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2001
>>
Express 3/4 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>

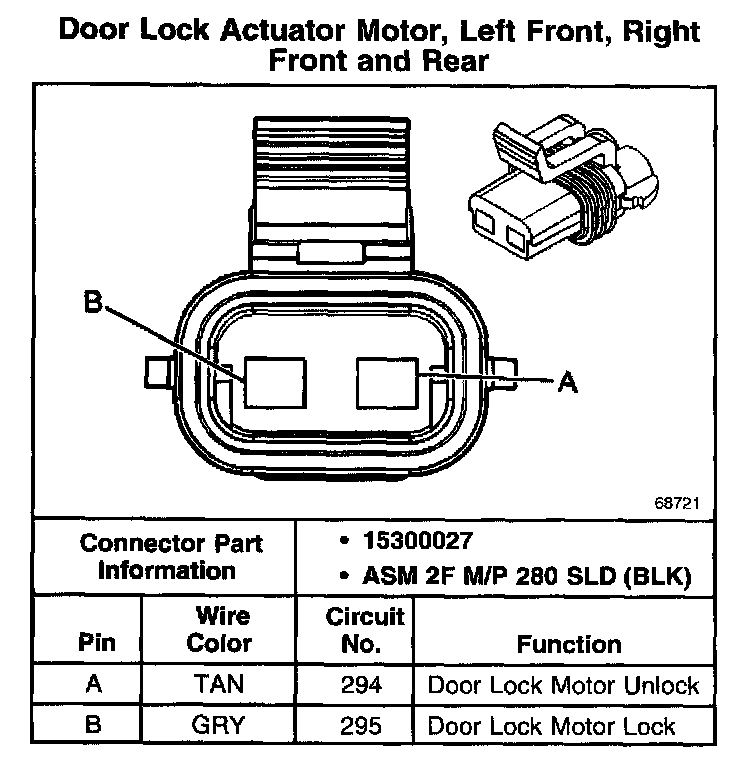

Door Lock Actuator Motor, Left Front, Right Front And Rear
Door Lock Actuator Motor, Left Front, Right Front And Rear
Door Lock Actuator Motor, Left Front, Right Front And Rear:
