Radio, RDO AMP Fuse, Audio Amplifier And Speaker - Subwoofer (UpLevel (W/O RSA))
Radio, RDO AMP Fuse, Audio Amplifier And Speaker - Subwoofer (UpLevel (W/O RSA))

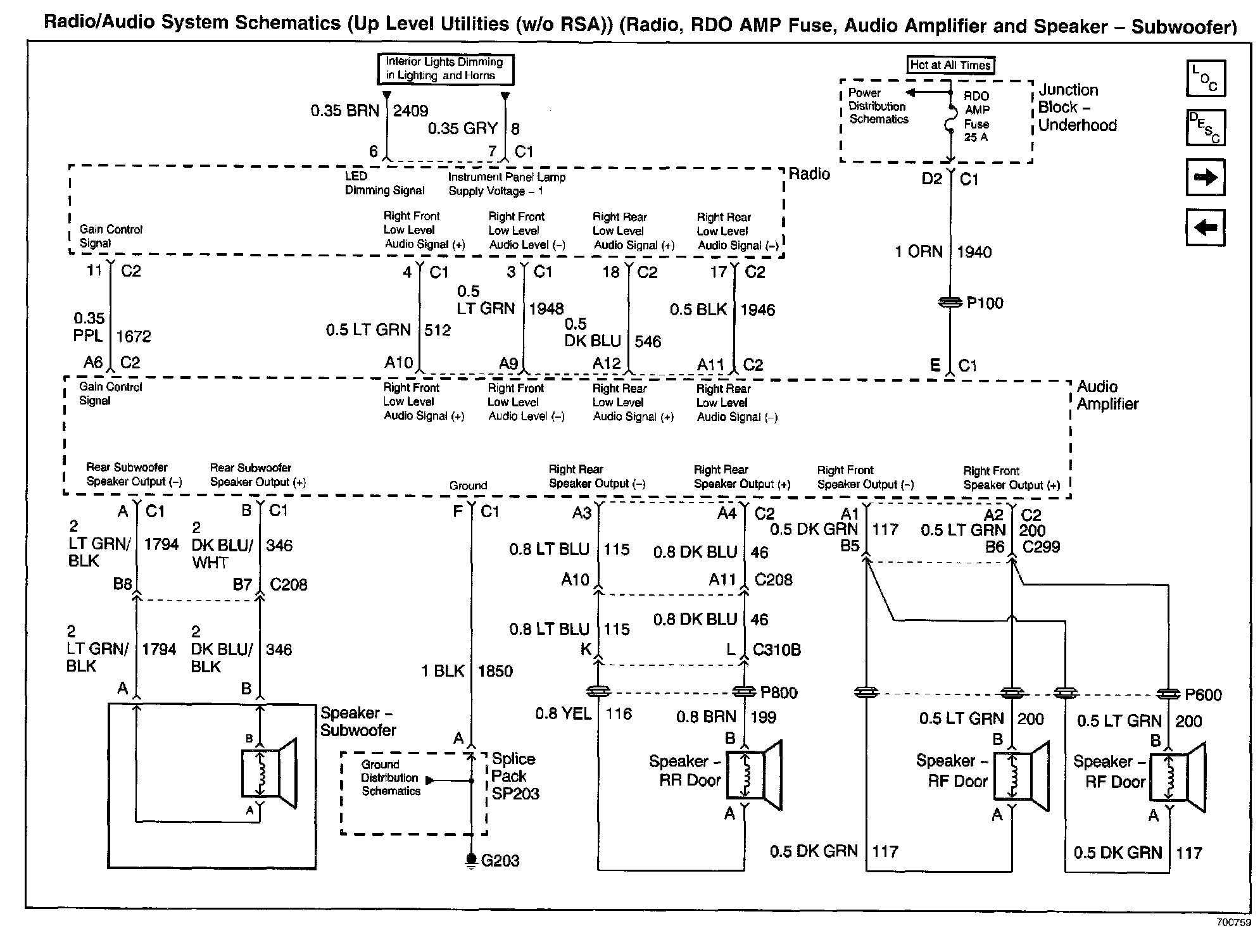

Radio/Audio System Schematics: Up Level Utilities (W/O RSA) (Radio, RDO AMP Fuse, Audio Amplifier And Speaker - Subwoofer):
