Driver/Vehicle Information Display: Service and Repair

DRIVER INFORMATION CENTER REPLACEMENT

REMOVAL PROCEDURE




1. Remove the floor console upper bezel by firmly grabbing and pulling outwards.

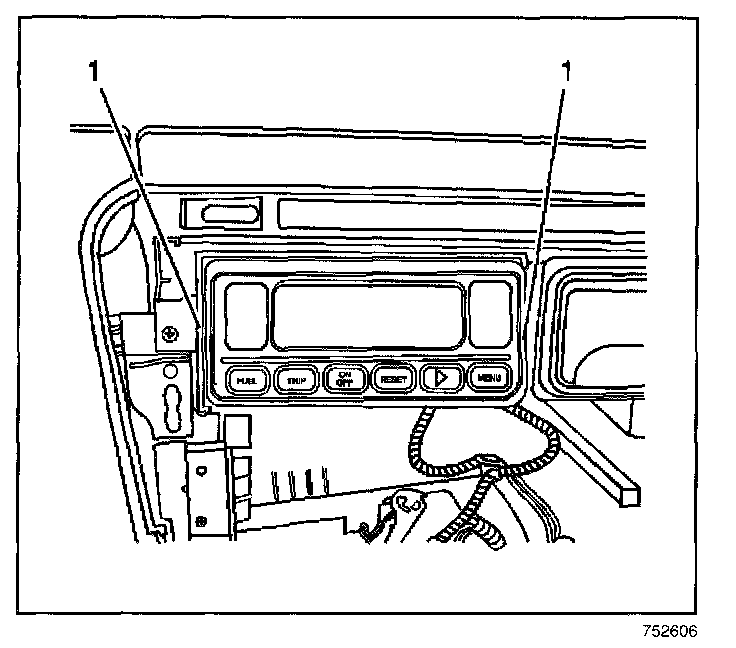

2. Insert a flat bladed tool at (1) to pry out the DIC.
3. Disconnect the electrical connector from the DIC.
4. Remove the DIC from the console.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the DIC.
2. Install the DIC in the opening till it clicks into place.




3. Install the upper bezel by pushing on the bezel till it is fully seated.
