Power Sunroof Does Not Open

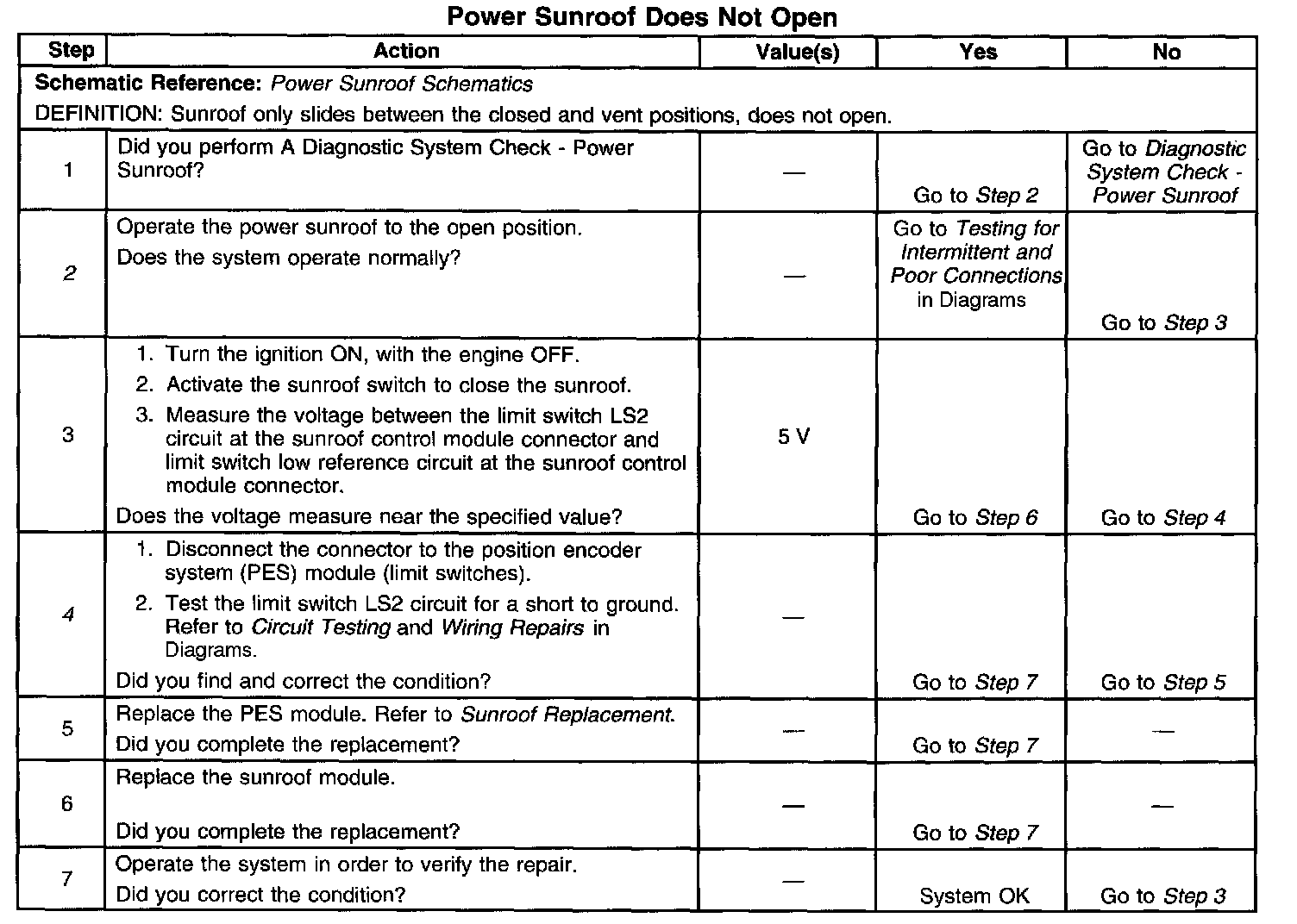

TEST DESCRIPTIONSteps 1-7:
The number(s) below refer to the step number(s) on the diagnostic table.
2. This step will test the if the sunroof will slide to the open position. If it opens, then inspect the limit switch LS2 for a stuck switch causing an intermittent short to ground.
4. Testing for a short to ground in the LS2 limit switch circuit or a stuck limit switch (closed).
