Chevy Truck
>>
2001
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Accessory Power Outlet - Right
Accessory Power Outlet - Right

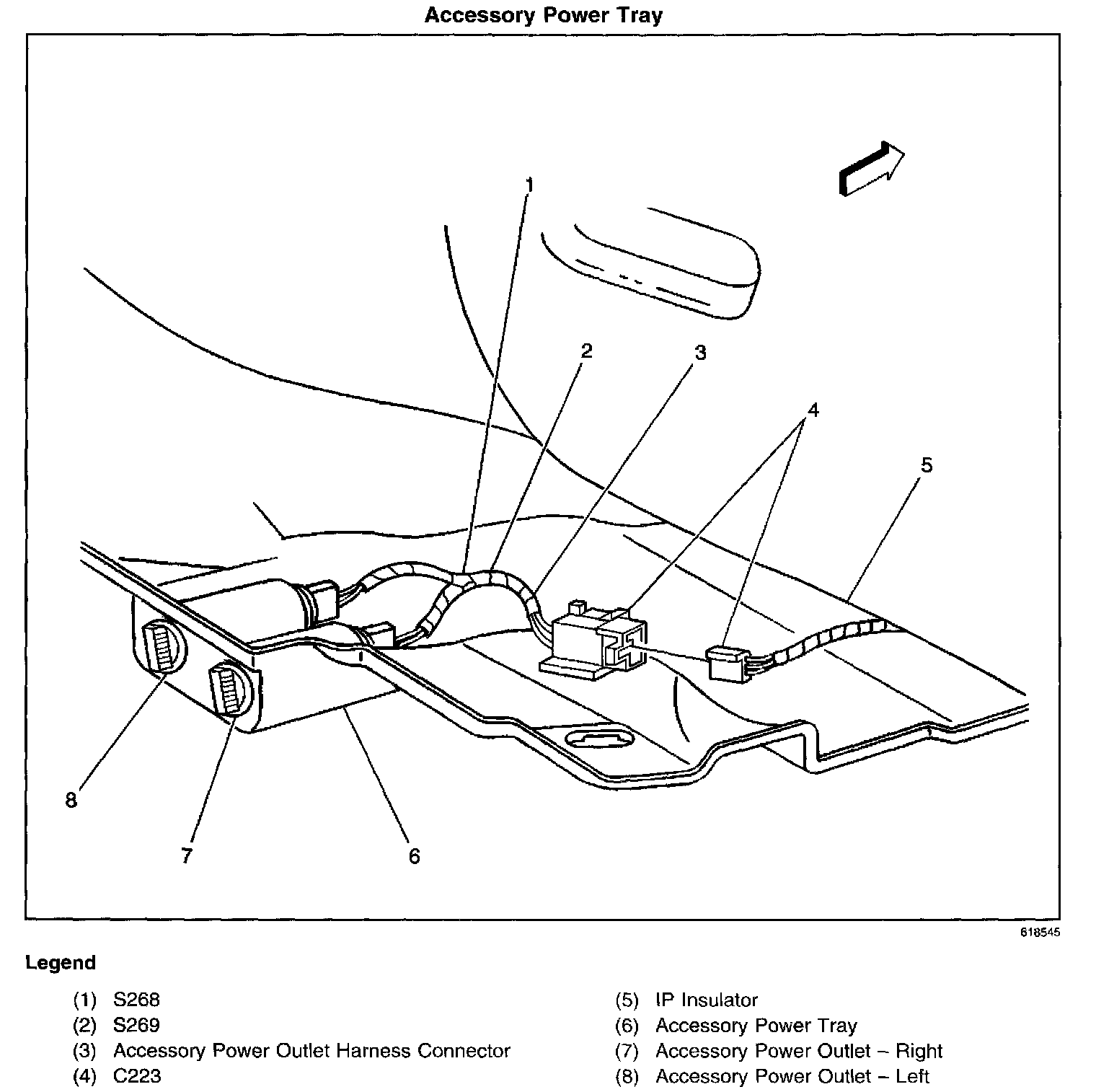

Location Views:
In the auxiliary power tray, to the right of the I/P
