Air Injection Pump
>>
C1 (W/ CA Emissions)
C1 (W/ CA Emissions)

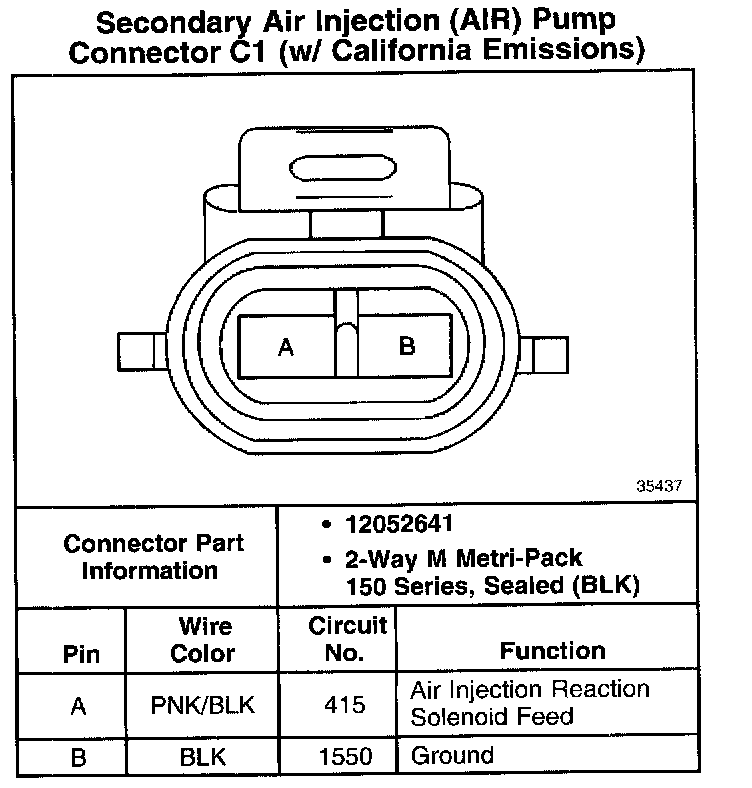

Secondary Air Injection (AIR) Pump Connector C1 (w/ California Emissions):
