Air Injection Pump
>>
C2 (W/ CA Emissions)
C2 (W/ CA Emissions)

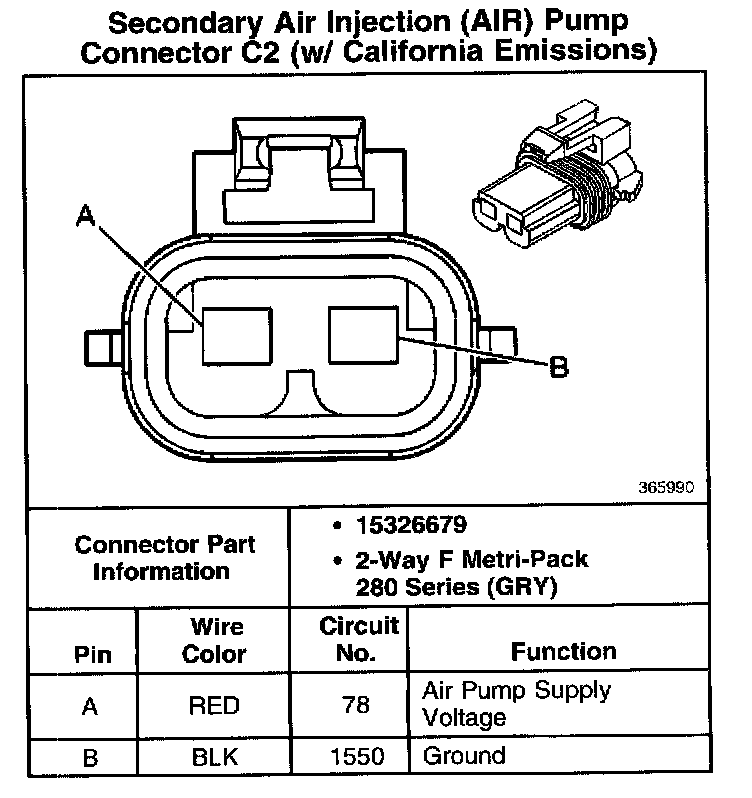

Secondary Air Injection (AIR) Pump Connector C2 (w/ California Emissions):
