Home
>>
Chevy Truck
>>
2001
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Audio Amplifier - C2
Audio Amplifier - C2

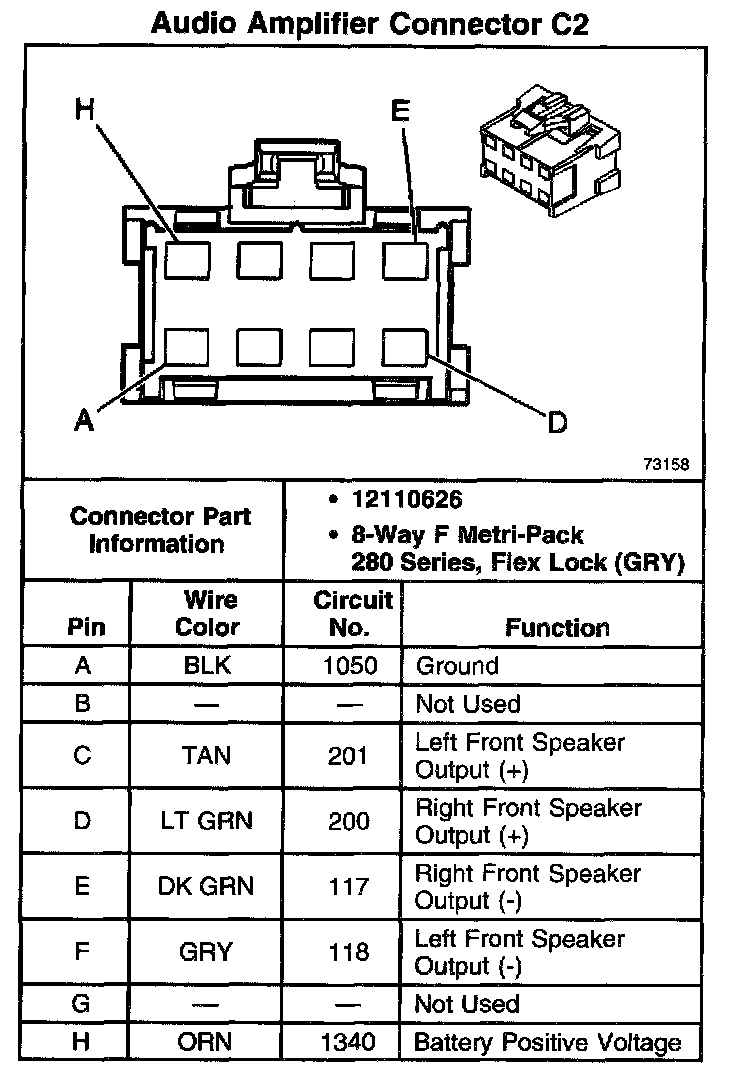

Audio Amplifier Connector C2:
