Front Door Handle Switch
>>

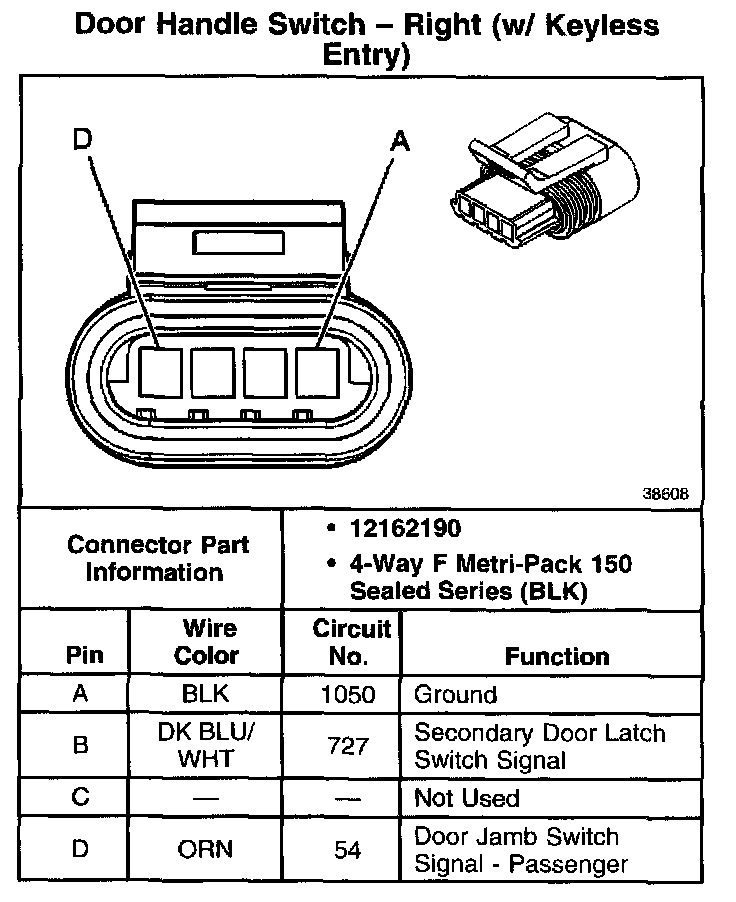

Door Handle Switch - Right (W/ Keyless Entry)
Door Handle Switch - Right (W/ Keyless Entry)
Door Handle Switch - Right (W/ Keyless Entry):
