Home
>>
Chevy Truck
>>
2001
>>
S10/T10 Blazer 2WD V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Door Lock Actuator - FR, RR, LR & Liftgate Lock Actuator
Door Lock Actuator - FR, RR, LR & Liftgate Lock Actuator

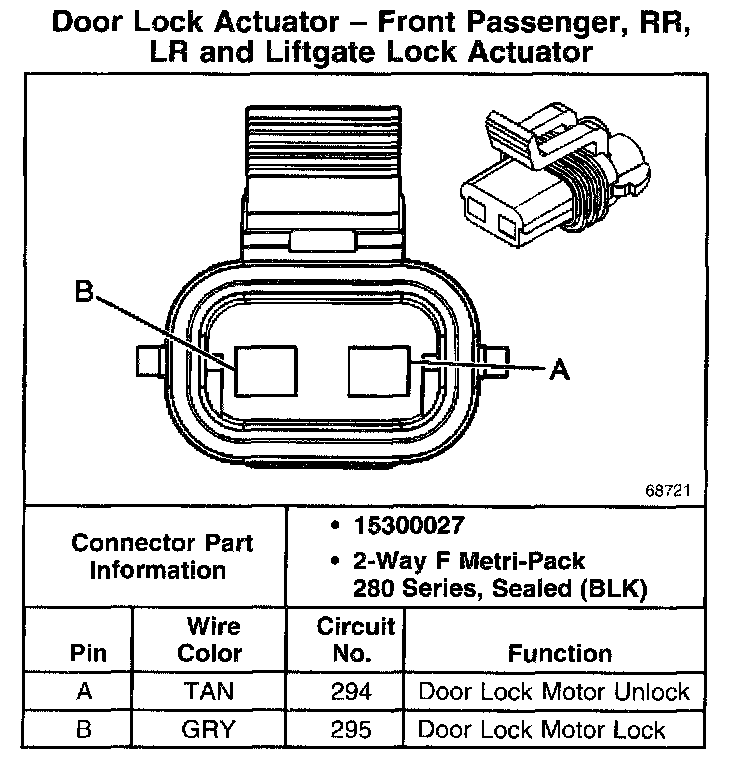

Door Lock Actuator - Front Passenger, RR, LR And Liftgate Lock Actuator:
