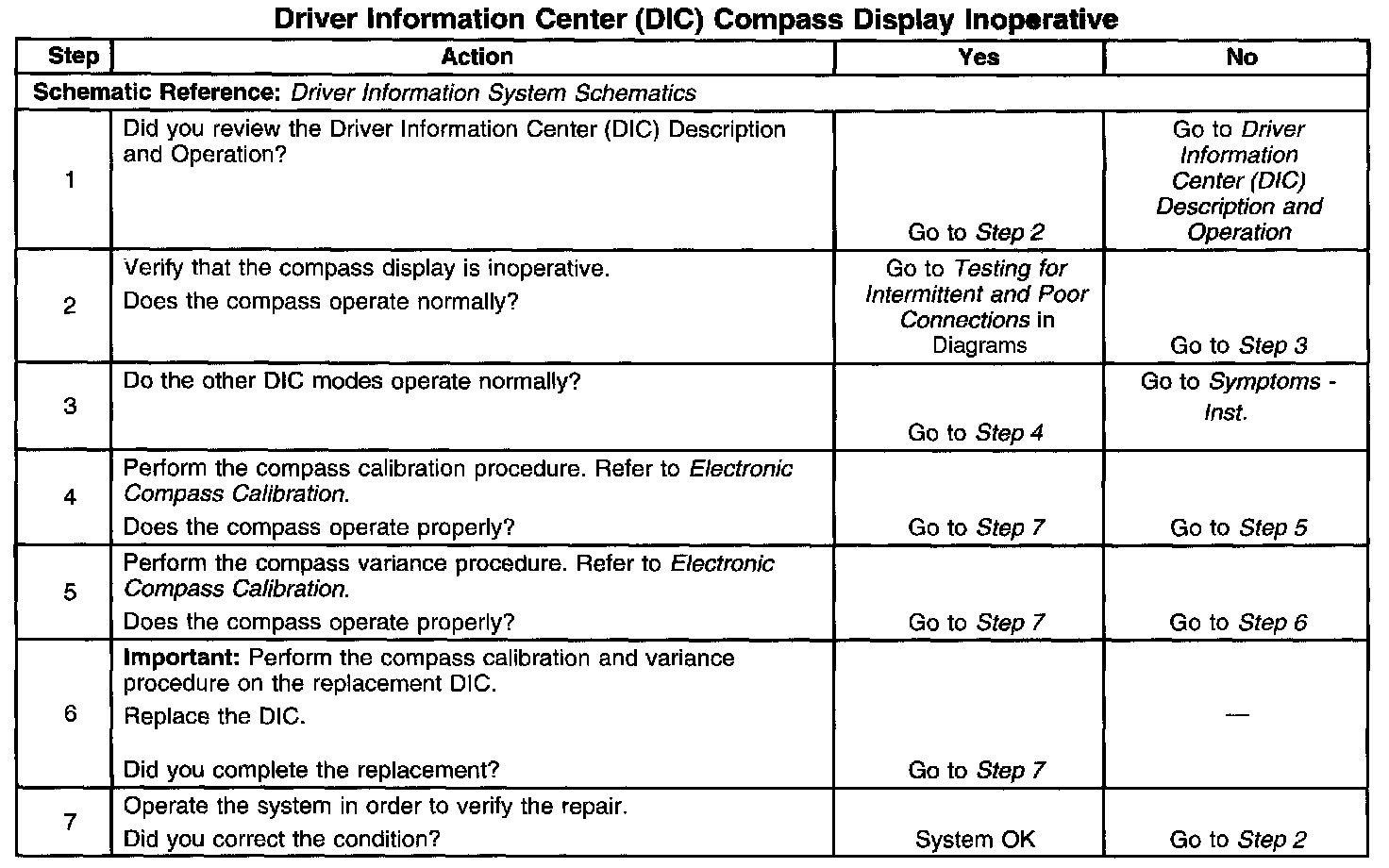

Driver Information Center (DIC) - Compass Display Inoperative
Driver Information Center (DIC) - Compass Display Inoperative
Steps 1-7:
