High Mounted Stoplamp Replacement (Endgate Window)

REMOVAL PROCEDURE

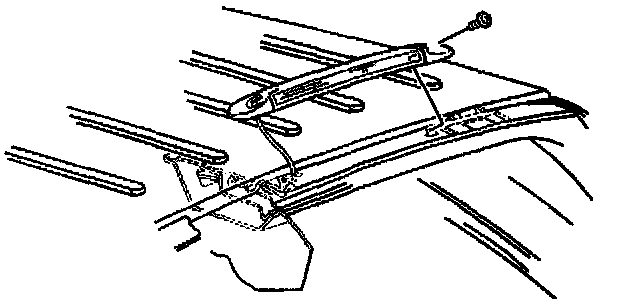

1. Remove the screws that retain the high mount stoplamp to the endgate window.
2. Remove the high mount stoplamp from the vehicle.
3. Pull the rubber grommet from the body at the top of the endgate opening in order to remove the electrical connector.
Pull the electrical connector through the hole in the body and disconnect.

INSTALLATION PROCEDURE




1. Connect the electrical connector and push the connector through the hole in the body in order to install the electrical connector.
2. Insert the rubber grommet into the hole in order to ensure that the hole is properly seated.
3. Install the high mount stoplamp to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Install the screws that retain the high mount stoplamp to the endgate window.

Tighten
Tighten the high mount stoplamp screws to 2.5 N.m (22 lb in).
