Fog Lamp Replacement - Front (Envoy)

REMOVAL PROCEDURE




1. Ensure that the foglamp switch is OFF.
2. Ensure that the ignition switch is in the LOCK position.
3. Rotate the bulb socket 1/4 turn counter-clockwise in order to remove the socket from the foglamp assembly.
4. Remove the bulb from the socket.

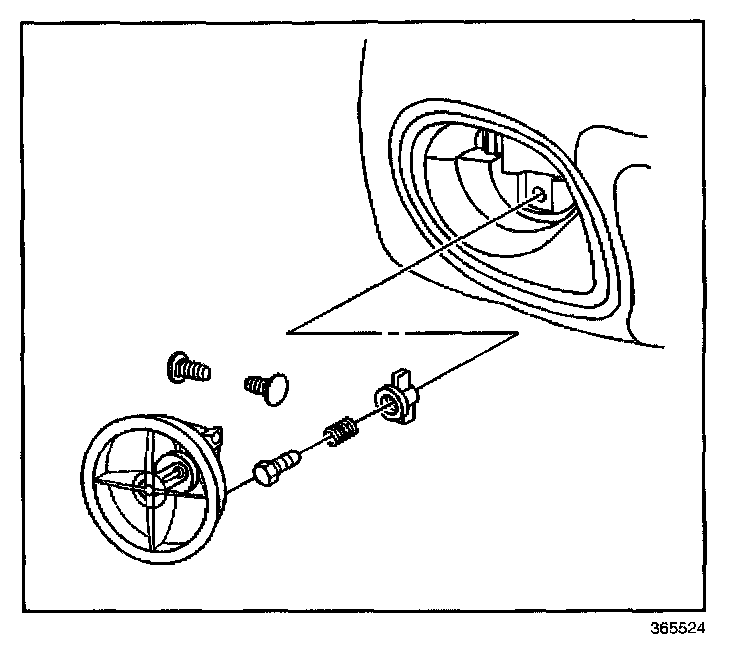

5. Remove the push-pin style retainers that retain the foglamp to the front fascia.
6. Remove the adjustment thumbwheel from the foglamp.
7. From the front of the vehicle, remove the foglamp from the fascia.

INSTALLATION PROCEDURE




1. From the front of the vehicle, install the foglamp to the fascia.
2. Install the adjustment thumbwheel to the foglamp.
3. Install the push-pin style retainers that retain the foglamp to the front fascia.
4. Install the foglamp bulb to the socket.
5. Rotate the bulb socket 1/4 turn clockwise in order to install the socket to the license plate lamp assembly.
6. Re-aim the fog lights. Refer to Fog Lamp Aiming Procedure. Fog Lamp Aiming Procedure
