Oxygen Sensor
Oxygen Sensor
Heated Oxygen Sensor (HO2S), Bank 1 Sensor 2:

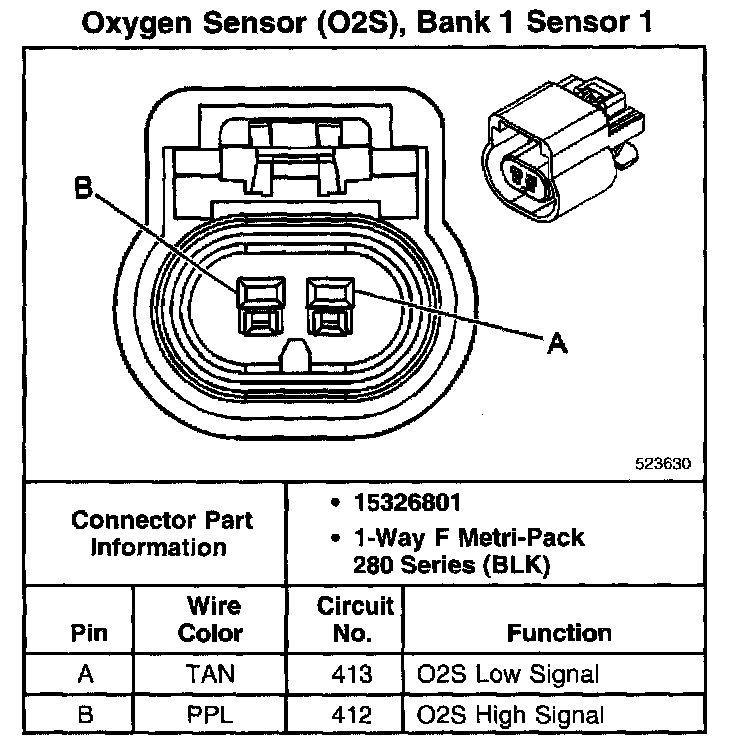

Oxygen Sensor (O2S), Bank 1 Sensor 1:
