Transmission Range Switch (W/ A/T)
Transmission Range Switch (W/ A/T)

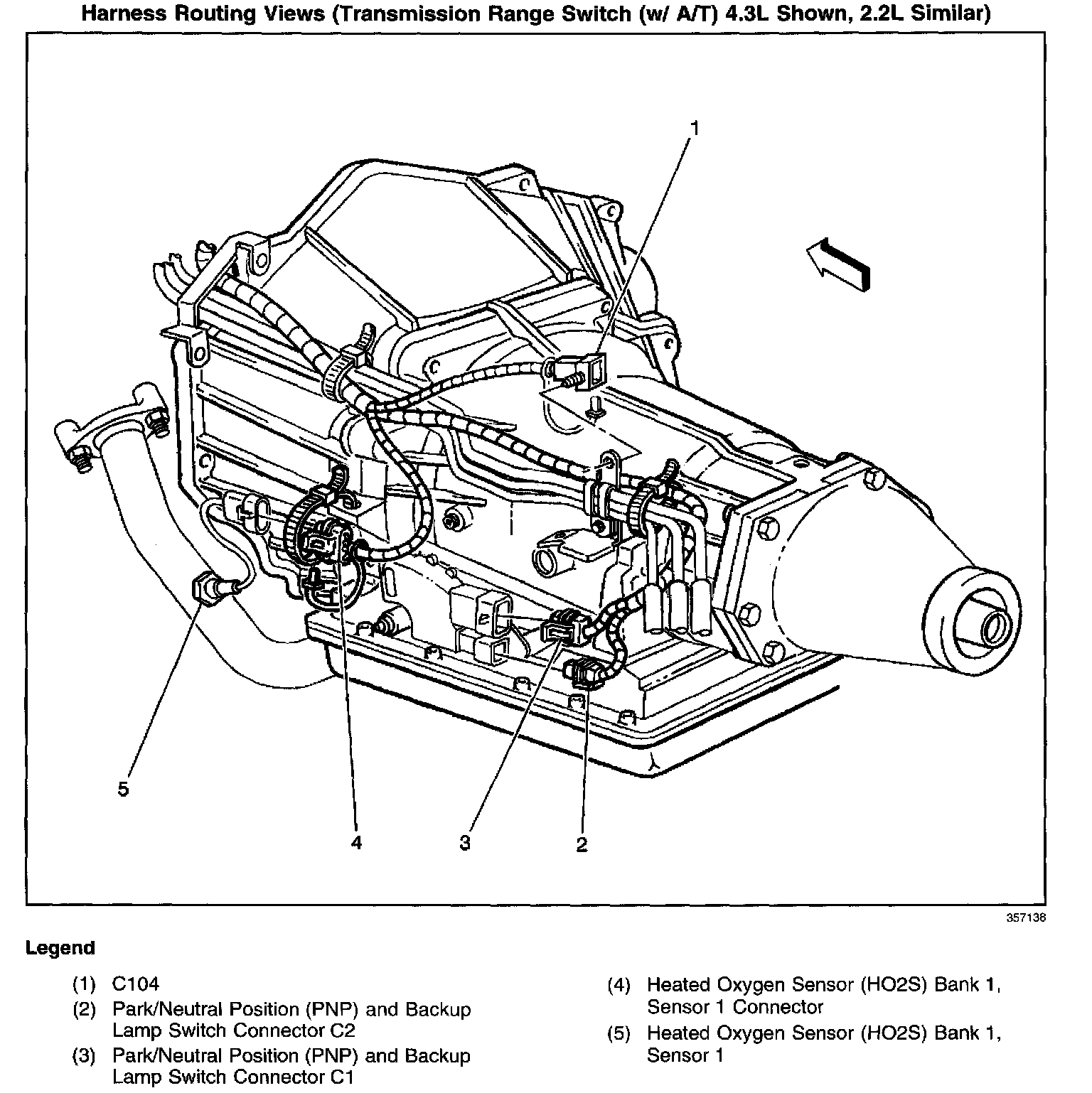

Harness Routing Views (Transmission Range Switch (W/ A/T) 4.3L Shown, 2.2L Similar):
