Discharge Air Temperature Sensor / Switch: Service and Repair

UPPER DISCHARGE AIR TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove instrument panel accessory trim plate.
2. Remove the radio.

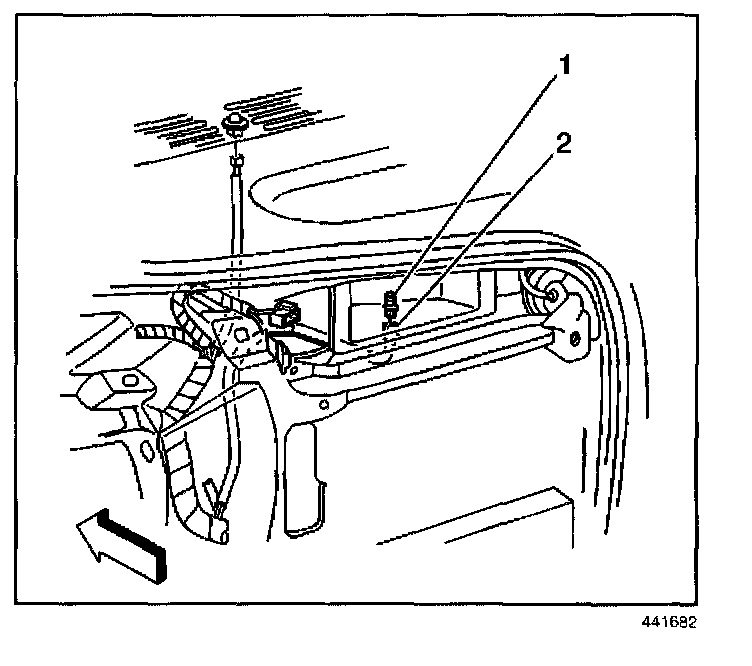

3. Disconnect the electrical connector (2) from the upper air temperature sensor (1).
4. Remove the upper air temperature sensor (1) by turning the sensor clockwise and pulling out.

INSTALLATION PROCEDURE

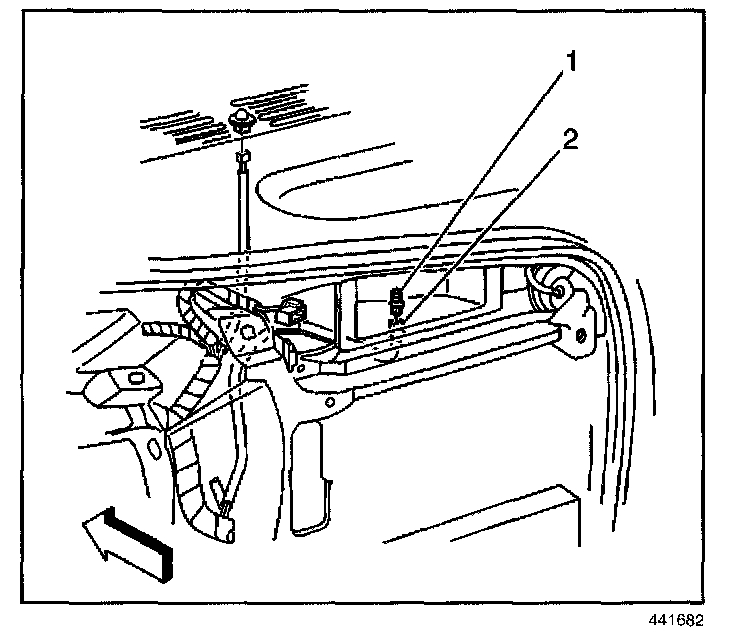

1. Install the upper air temperature sensor (1) to the vehicle.
2. Connect the electrical connector (2) to the upper air temperature sensor (1).
3. Install the radio.
4. Install the instrument panel accessory trim plate.
