G104, Stop Fuse, Stoplamp Switch, and F1 Fuse

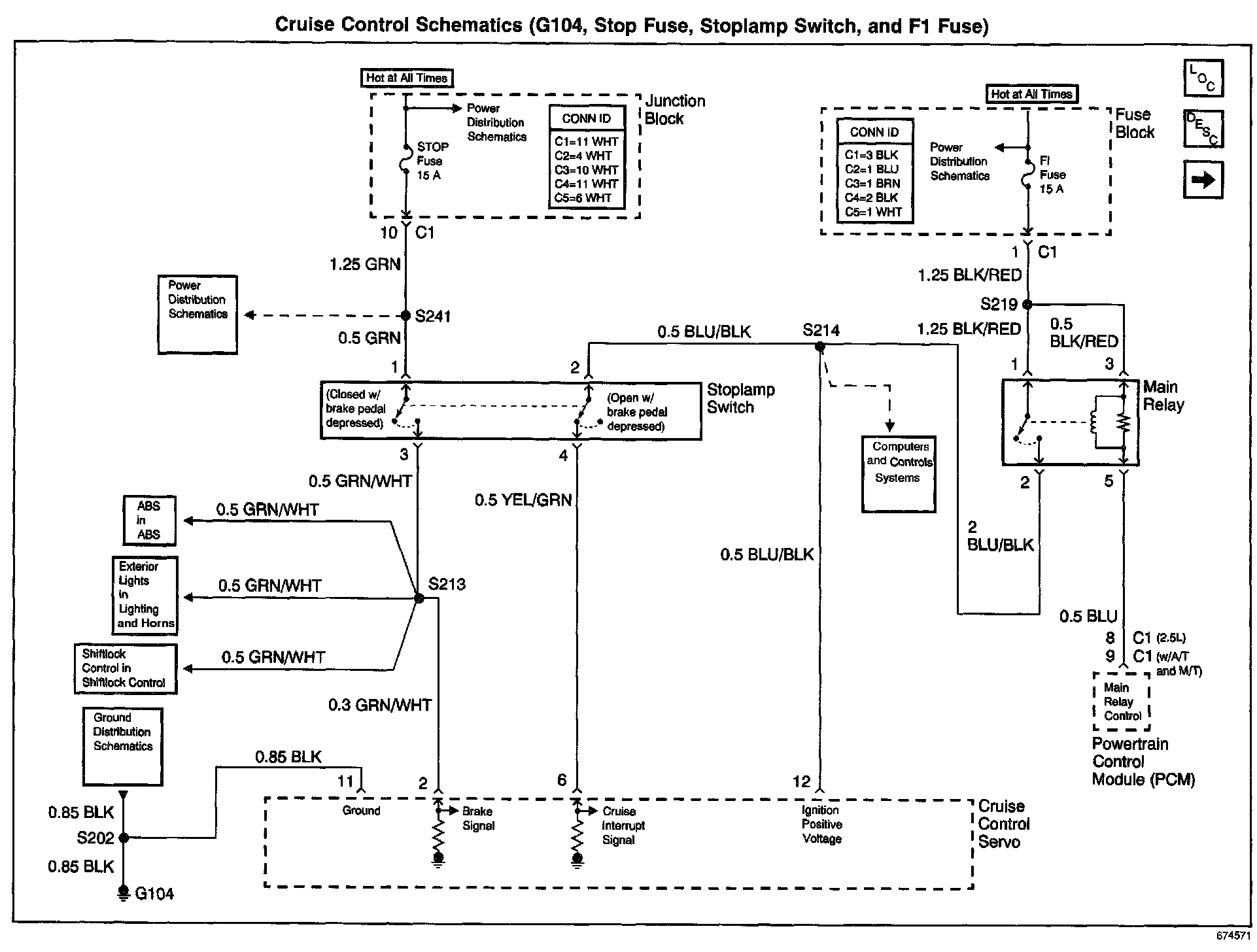

Cruise Control Schematics: G104, Stop Fuse, Stoplamp Switch, And F1 Fuse:
