Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2001
>>
Tracker 2WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
>>
O/D Cut Circuit and Vehicle Speed Sensor (VSS)
O/D Cut Circuit and Vehicle Speed Sensor (VSS)

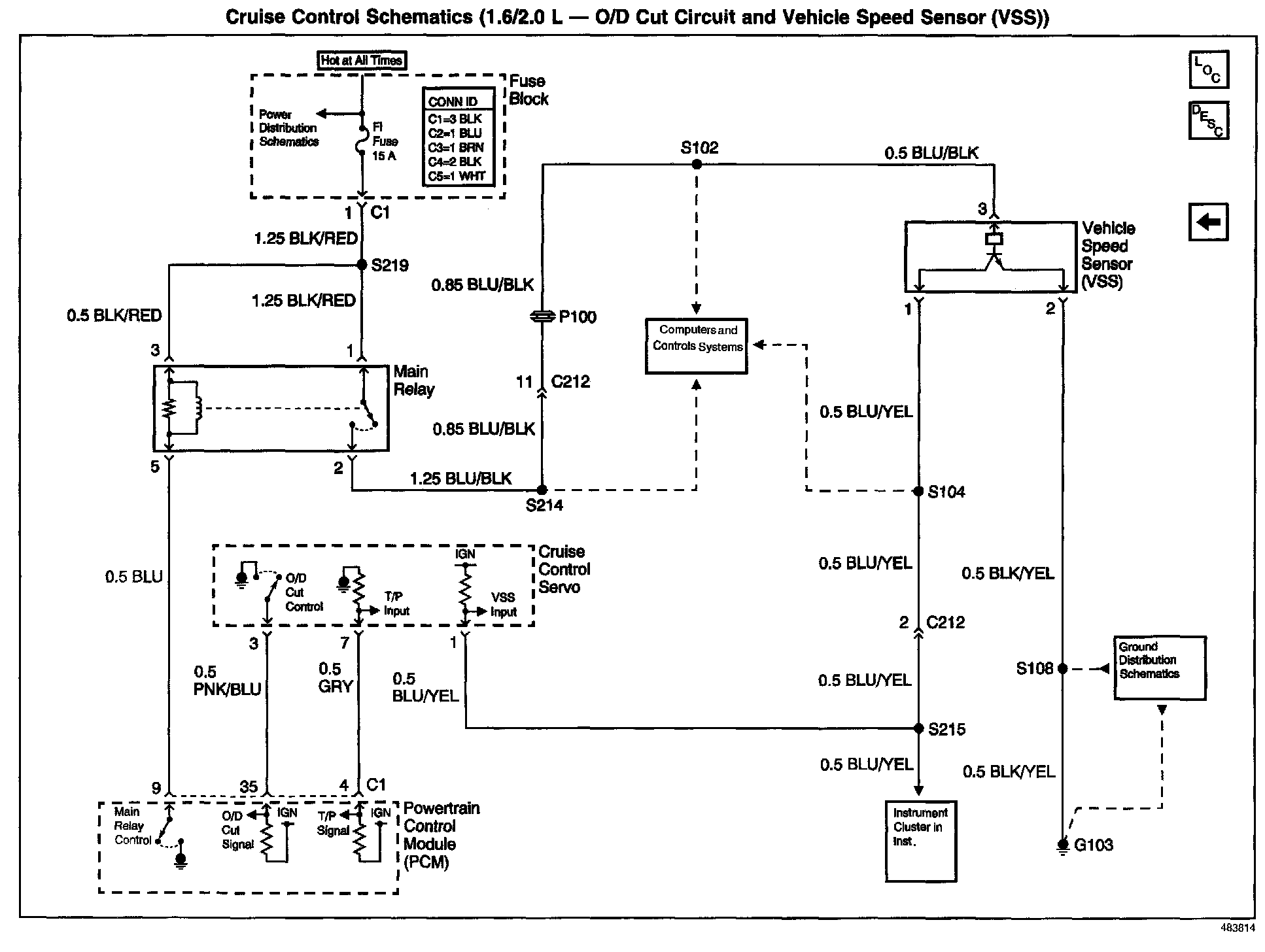

Cruise Control Schematics: O/D Cut Circuit And Vehicle Speed Sensor (VSS):
Cruise Control Schematics: O/D Cut Circuit And Vehicle Speed Sensor (VSS):
