Fuel Tank Pressure Release Valve
Fuel Tank Pressure Release Valve

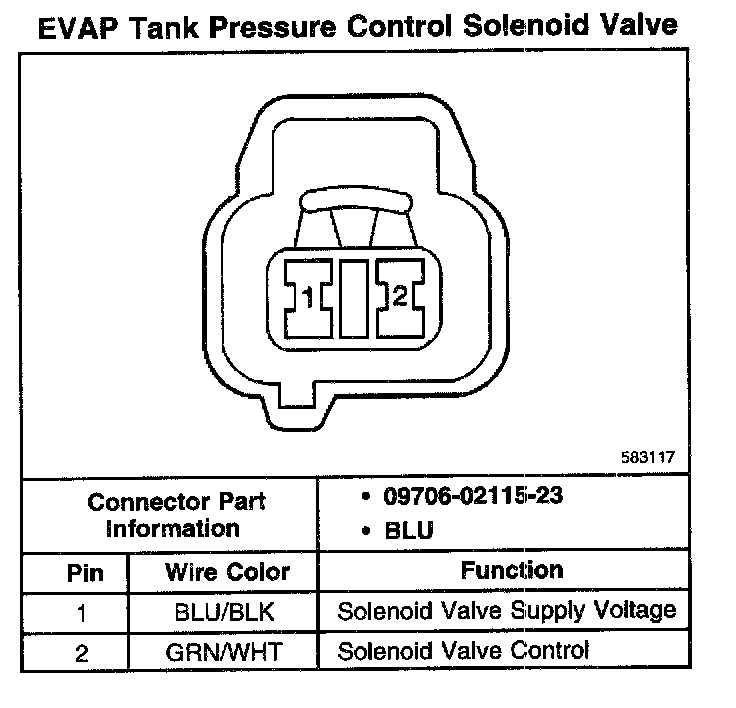

EVAP Tank Pressure Control Solenoid Valve:
