Home >> Chevy Truck >> 2001 >> Tracker 2WD L4-1.6L VIN 6 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Coil >> Ignition Coil - Cylinder 1-4

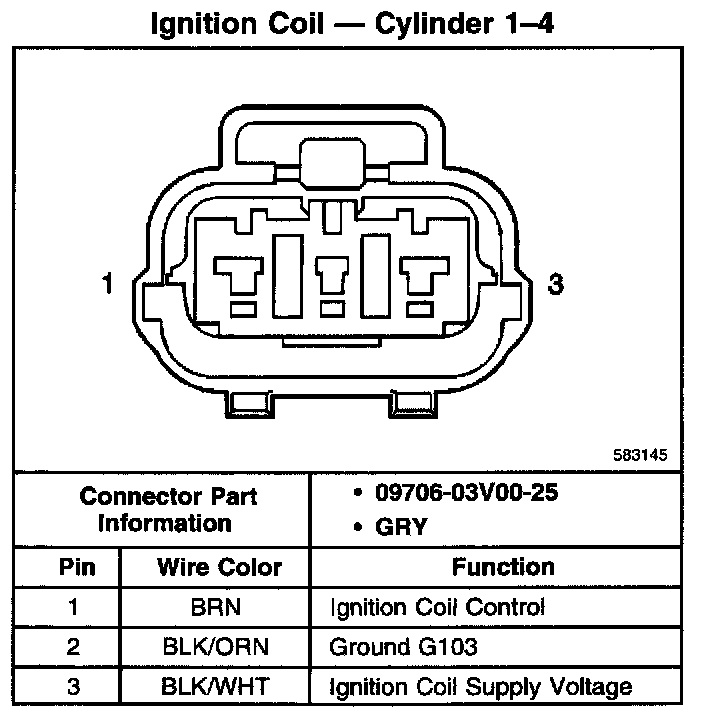

Ignition Coil - Cylinder 1-4

Ignition Coil - Cylinder 1-4:
