Home
>>
Chevy Truck
>>
2001
>>
Tracker 2WD L4-1.6L VIN 6
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Locks
>>
System Diagram
System Diagram

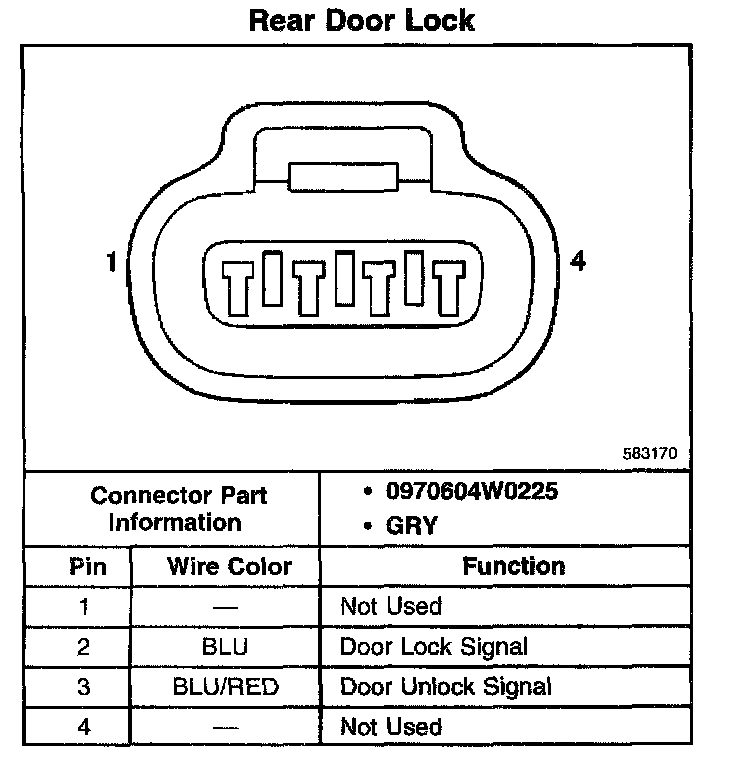

Rear Door Lock:
