Cigar Lighter Lamp Bulb Replacement

REMOVAL PROCEDURE




1. Remove the radio from the instrument panel.

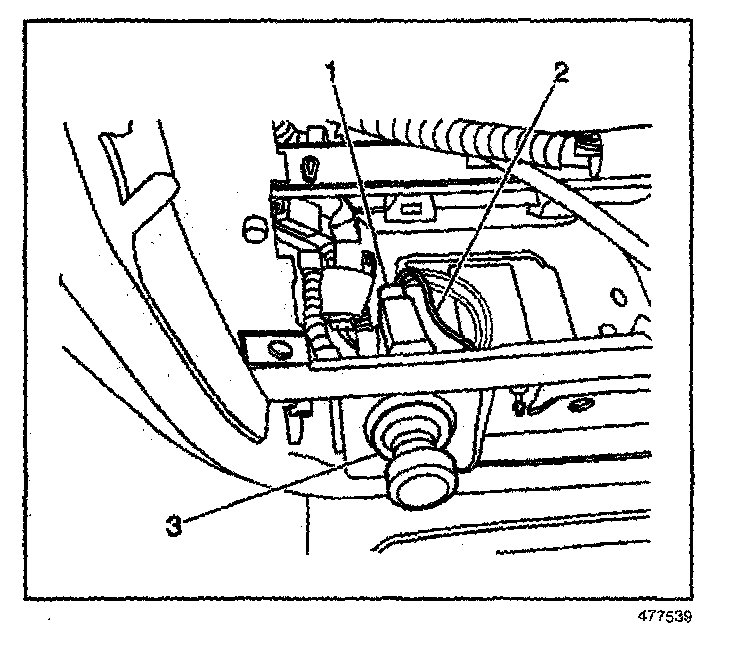

2. Remove the cigar lighter bulb socket (1) from the back of the cigar lighter (3).
3. Remove the bulb from the cigar lighter bulb socket (1).

INSTALLATION PROCEDURE




1. Install the bulb to the cigar lighter bulb socket (1).
2. Install the cigar lighter bulb socket (1) to the back of the cigar lighter (3).
3. Install the radio to the instrument panel.
