Instrument Cluster Indicators

Indicators:

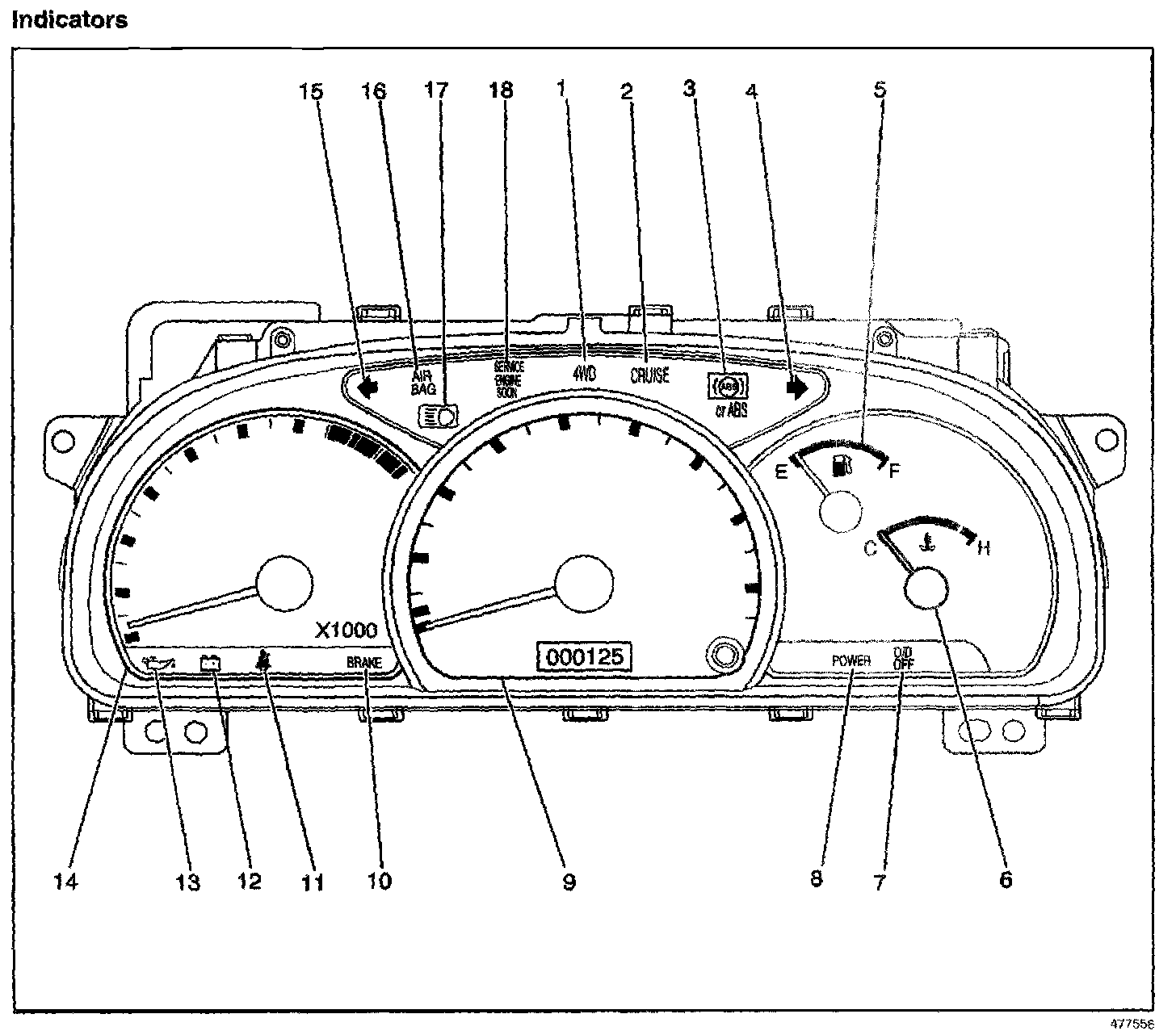

The instrument panel cluster includes the following indicators:
^ ABS (3), if the vehicle is equipped with an antilock brake system
^ AIR BAG (16)
^ BRAKE (10)
^ Charging system (12)
^ CRUISE (2), if equipped
^ Fasten seat belt (11)
^ High beam (17)
^ O/D OFF (7), if the vehicle is equipped with the 4-speed A/T
^ Oil pressure (13)
^ POWER (8), if the vehicle is equipped with the 4-speed A/T
^ SERVICE ENGINE SOON (18)
^ Turn signals (4,15)
^ 4WD (1), if equipped

The indicator bulbs are serviceable from the rear of the instrument cluster. Refer to Instrument Cluster Lamp Replacement. Instrument Panel Cluster (IPC) - Lamp Replacement

The instrument cluster indicators may differ slightly from model to model, depending on the following factors:
^ The transmission selection
^ The options
^ The model selection
