Emission Controls

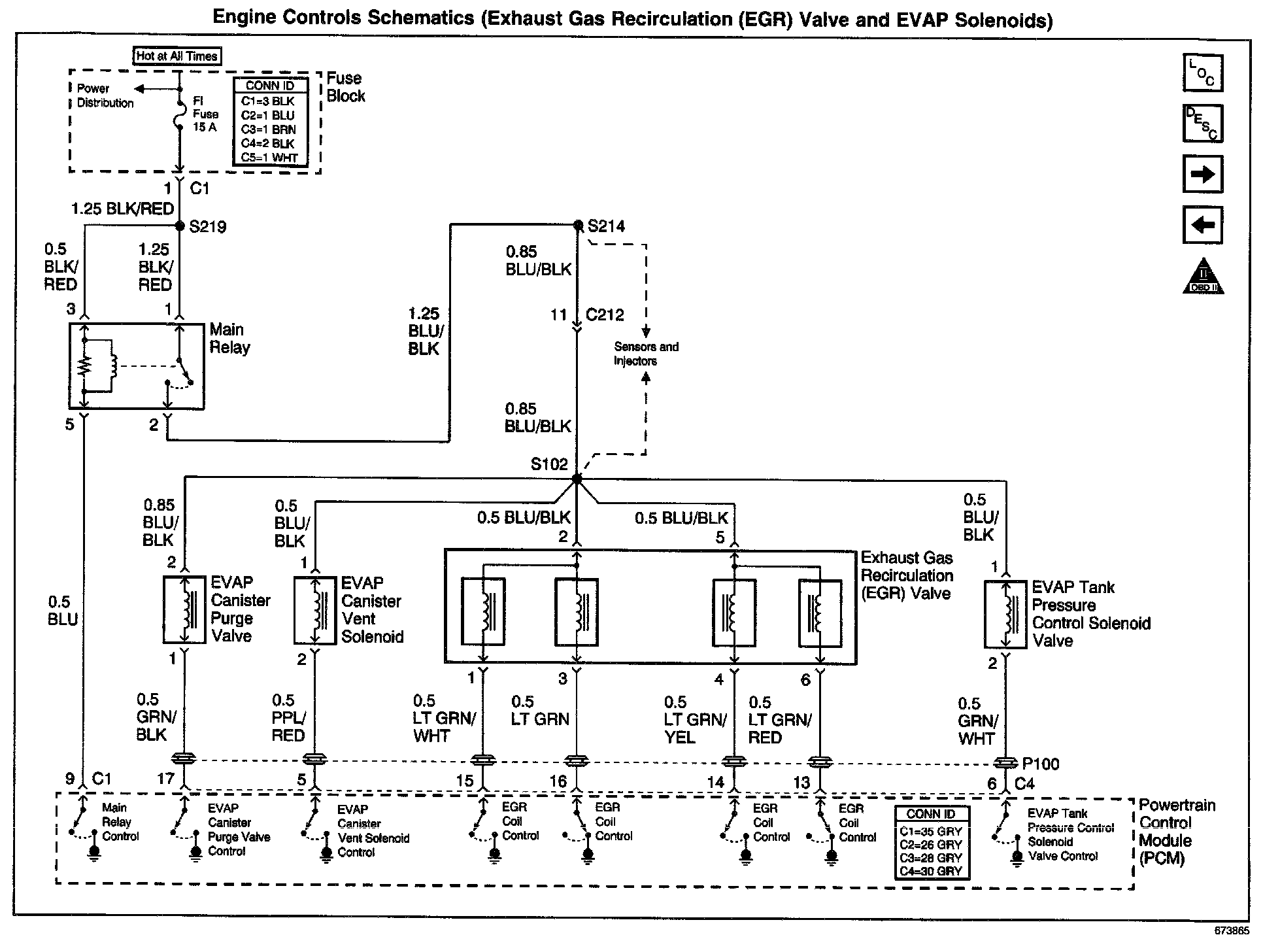

Engine Controls Schematics: Exhaust Gas Recirculation (EGR) Valve And EVAP Solenoids:
