Fuse Block

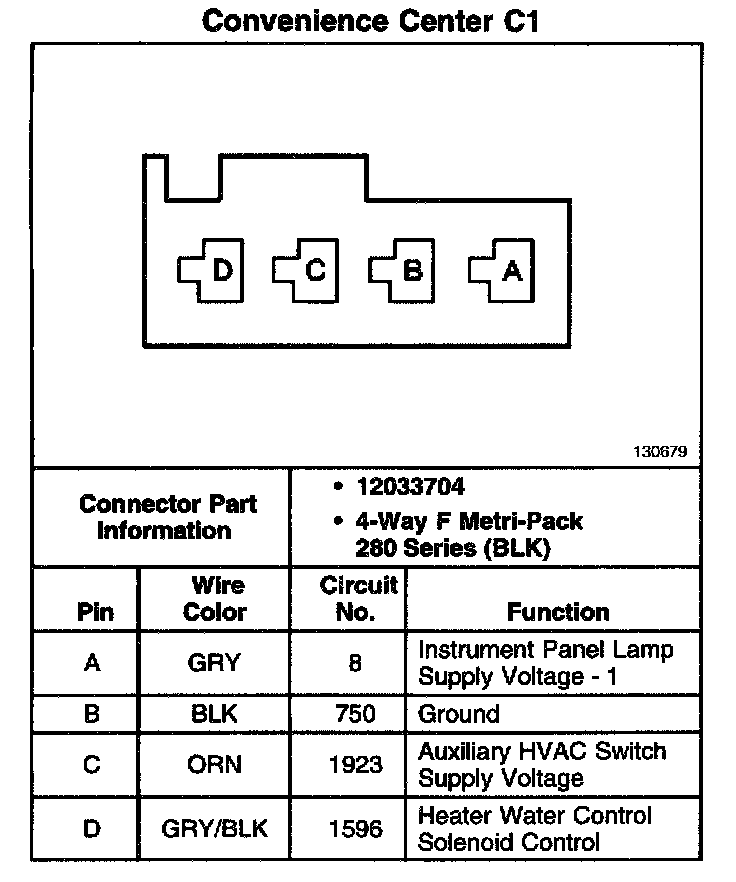

Convenience Center C1:

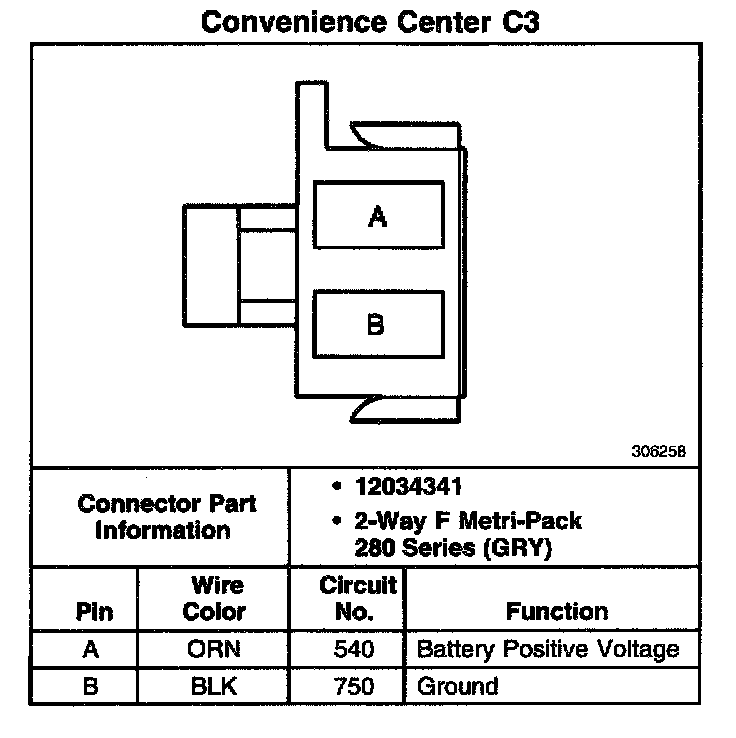

Convenience Center C3:

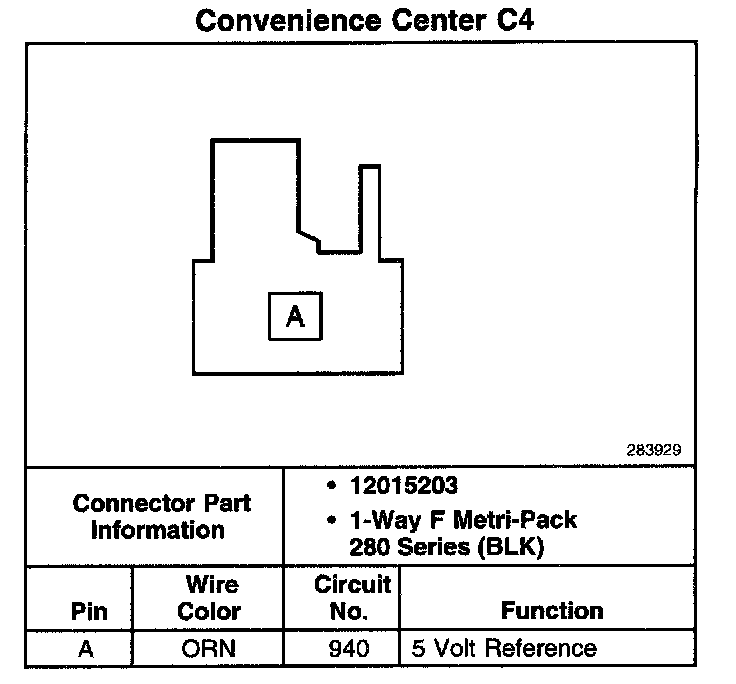

Convenience Center C4:

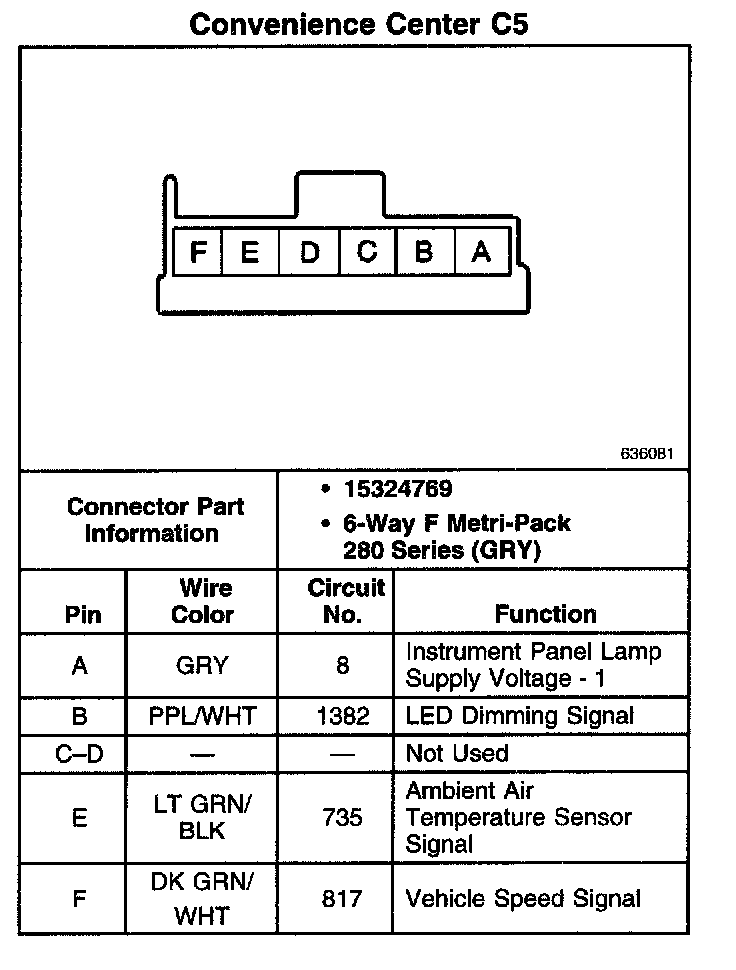

Convenience Center C5:

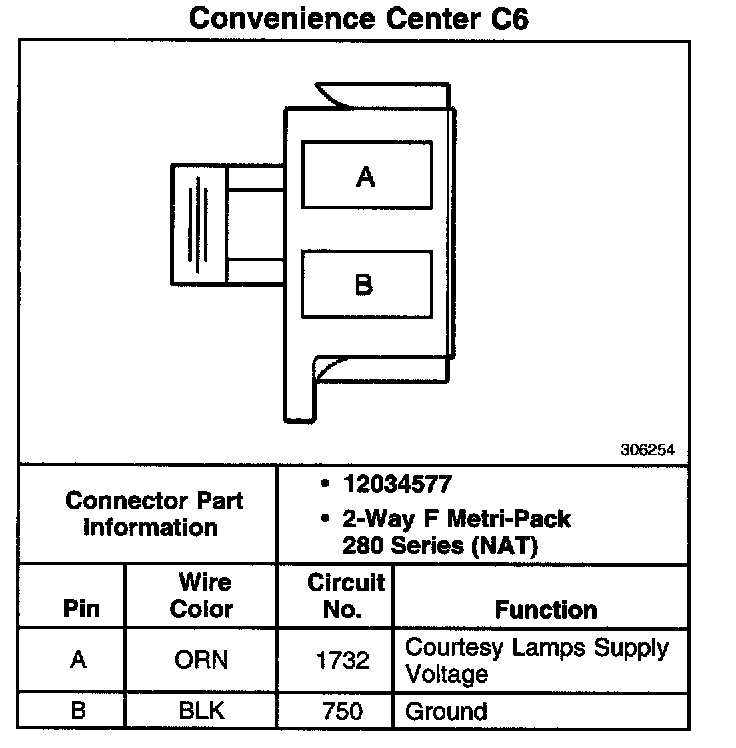

Convenience Center C6:

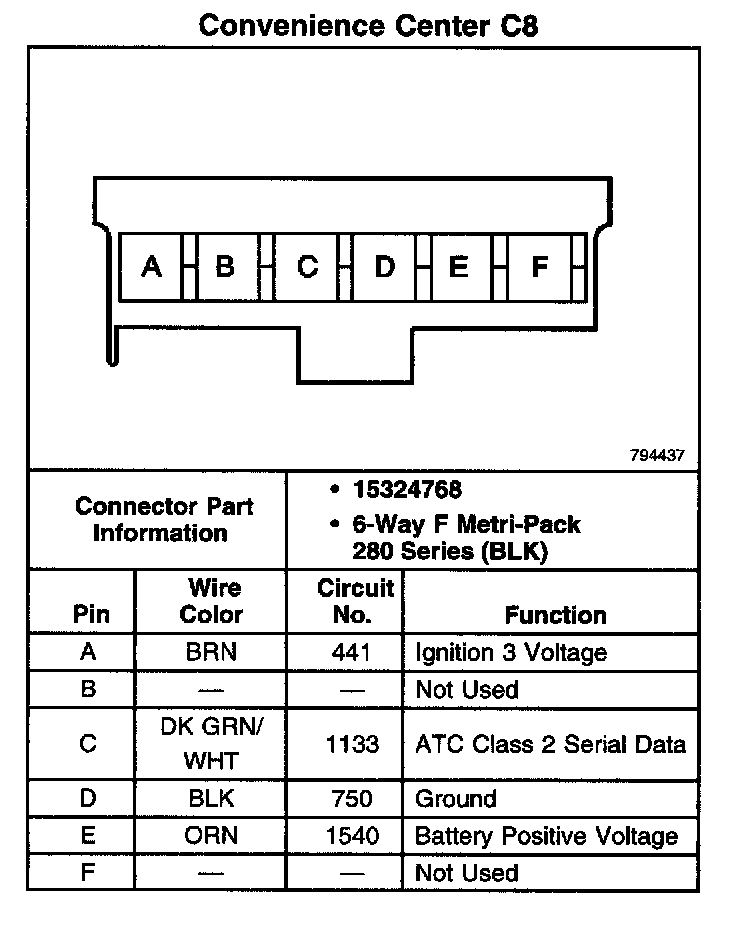

Convenience Center C8:

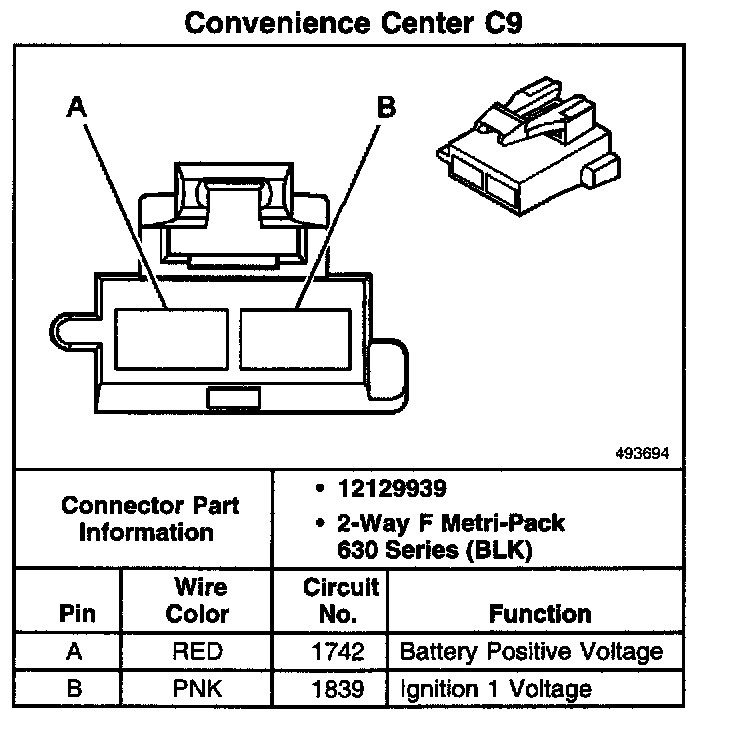

Convenience Center C9:

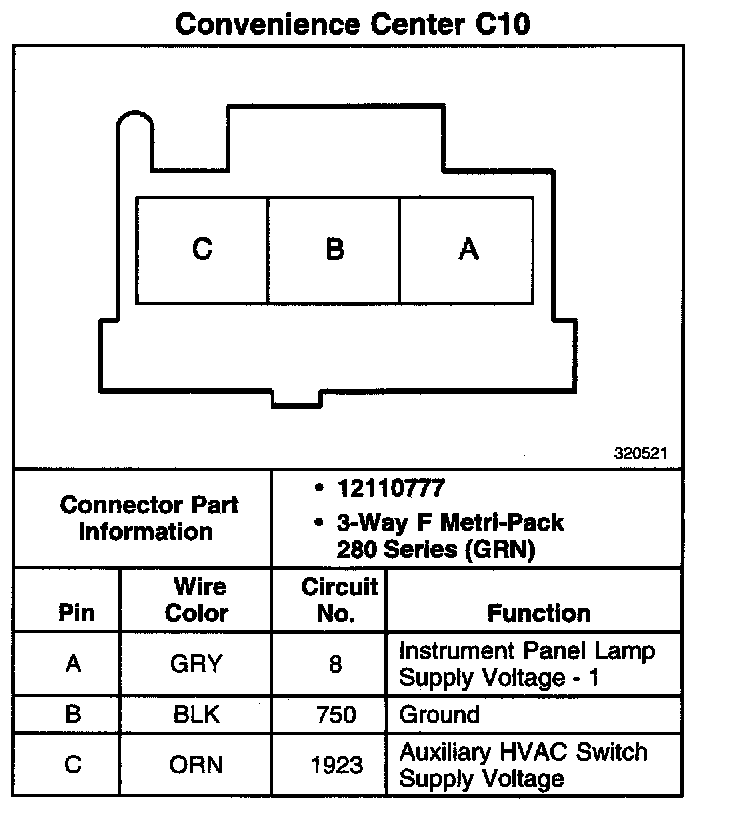

Convenience Center C10:
