Chevy Truck
>>
2002
>>
Astro Van 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
Transmission Control Systems

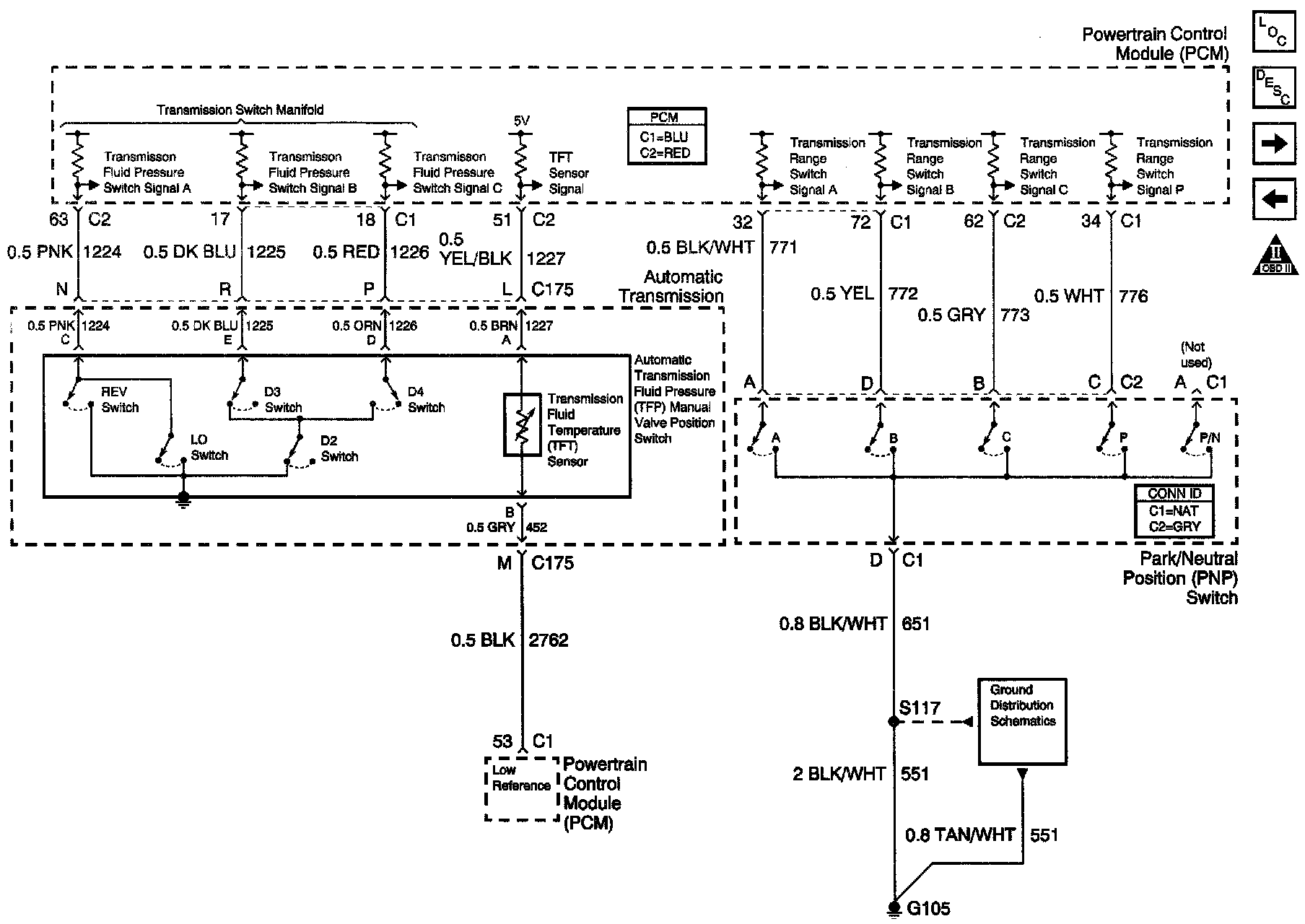

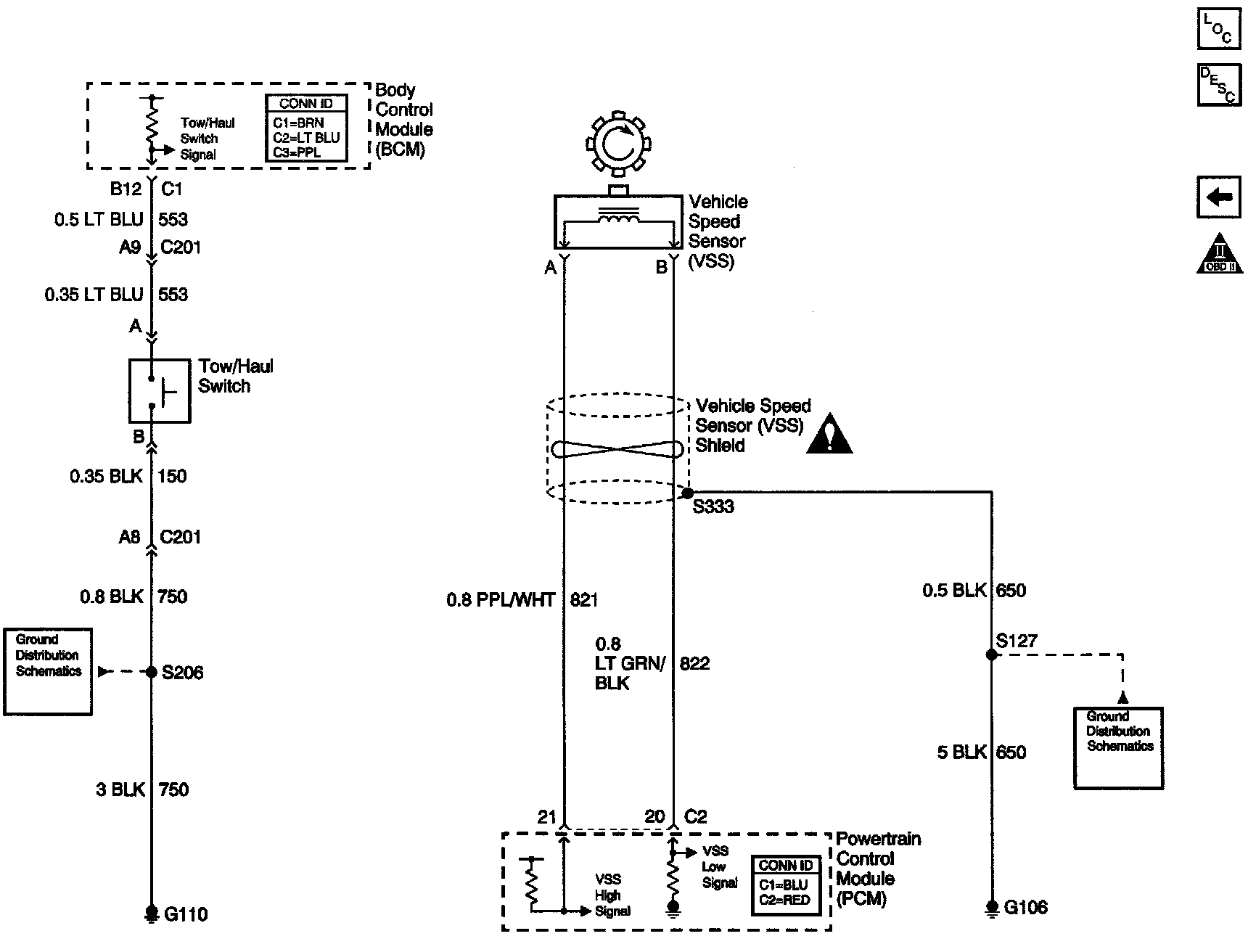

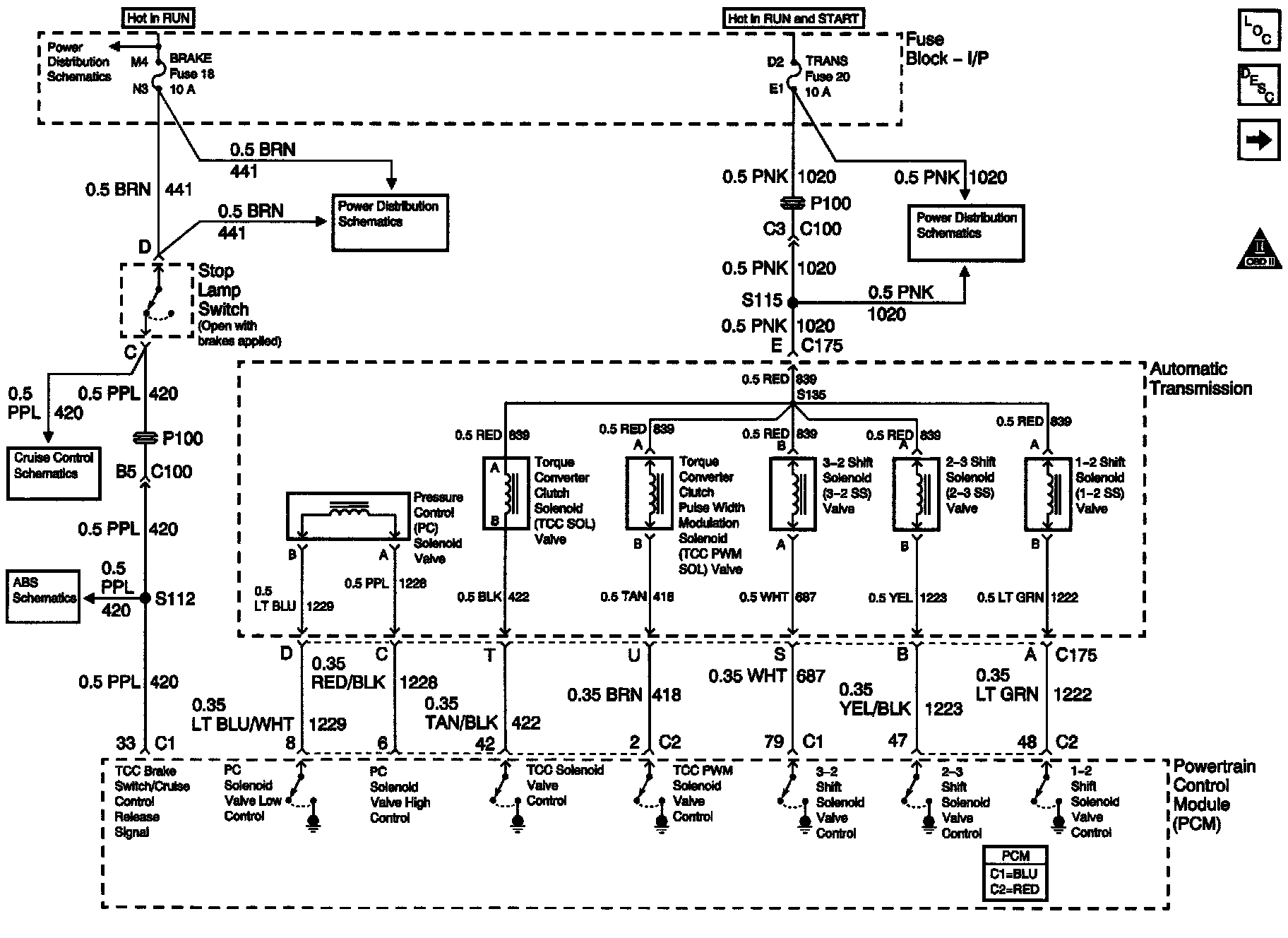

Schematic Diagrams
