Front of Dash Wiring, LH Side (Electrical)
Front of Dash Wiring, LH Side (Electrical)

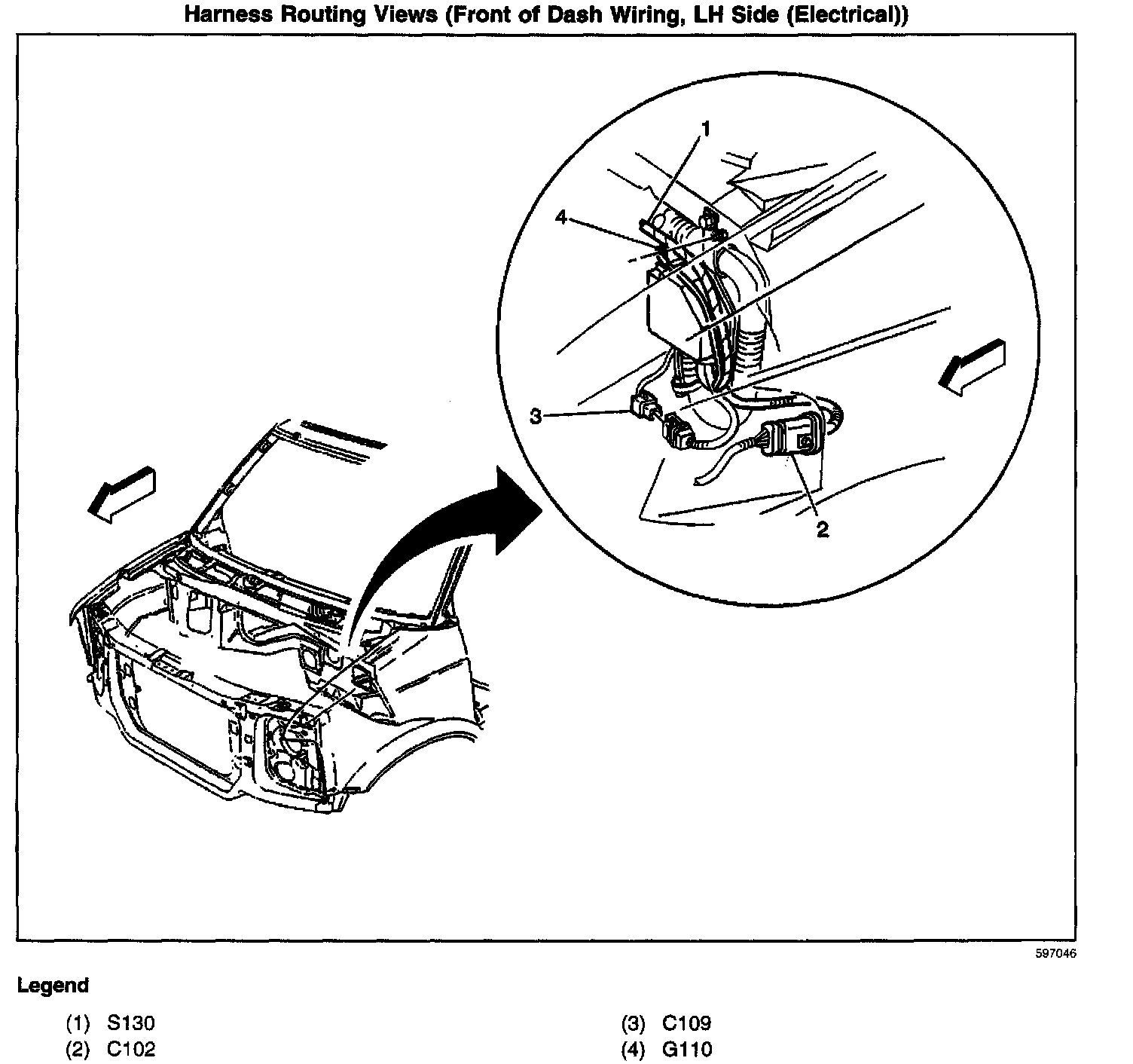

Harness Routing Views (Front Of Dash Wiring, LH Side (Electrical)):
