Grate Replacement - Load Floor Water Management

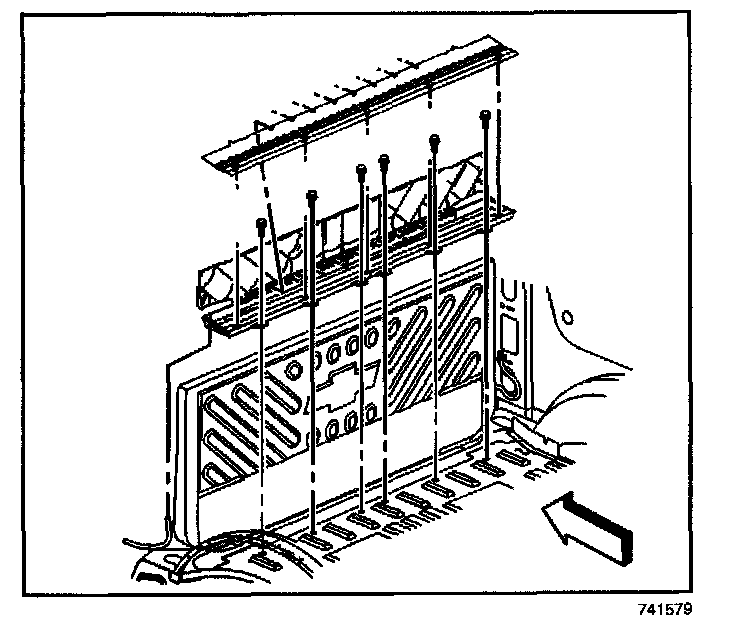

REMOVAL PROCEDURE




1. Remove the rear compartment cover assembly.
2. Remove the load floor mat from the vehicle.
3. Pull up on the grate panel in order to remove.
4. Remove the bolts from the panel assembly - load floor trim.
5. Remove the panel from the vehicle.

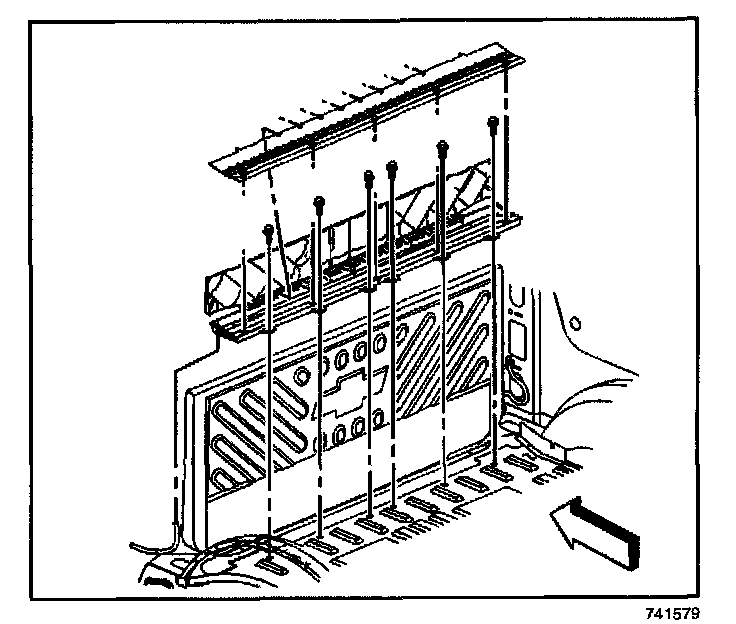

INSTALLATION PROCEDURE




1. Install the panel assembly - load floor to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the retaining bolts to the load floor trim panel.

Tighten
Tighten the bolts to 4 N.m (35 lb in).

3. Install the load floor mat to the vehicle.
4. Install the rear compartment cover assembly to the vehicle.
