Instrument Panel Harness Routing View
Instrument Panel Harness Routing View

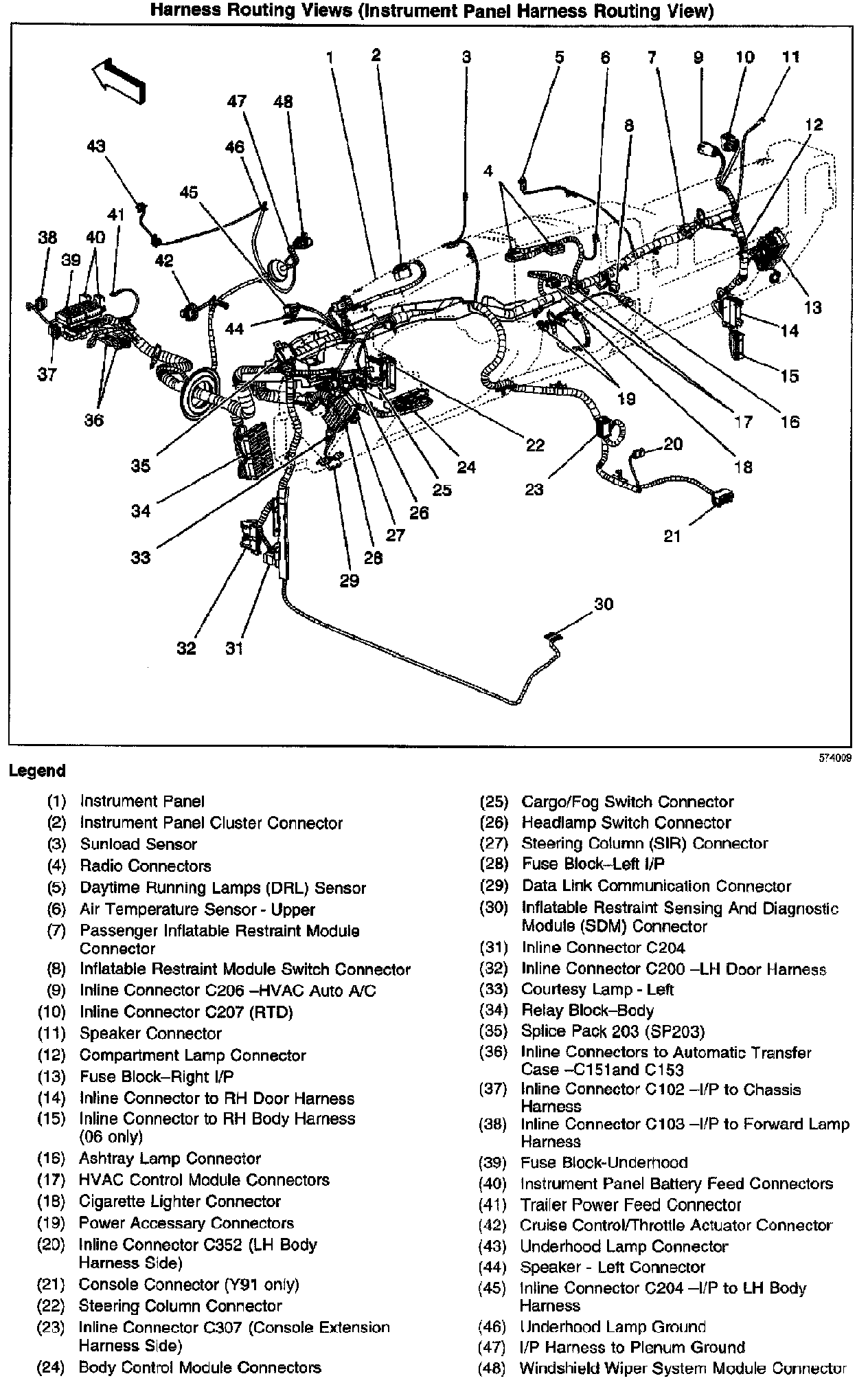

Harness Routing Views (Instrument Panel Harness Routing View):

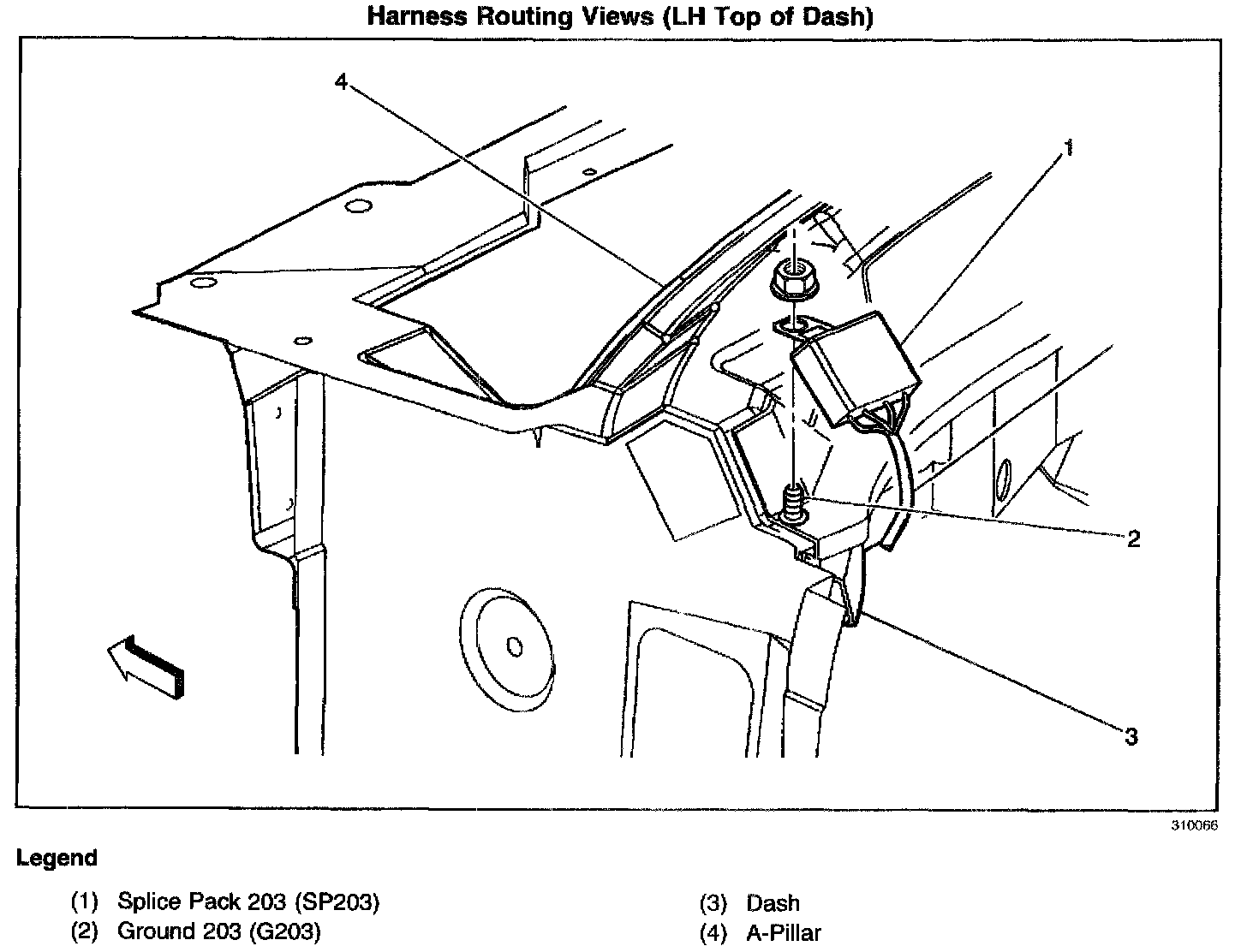

Harness Routing Views (LH Top Of Dash):
