Daytime Running and Fog Lamp Assembly Replacement

REMOVAL PROCEDURE

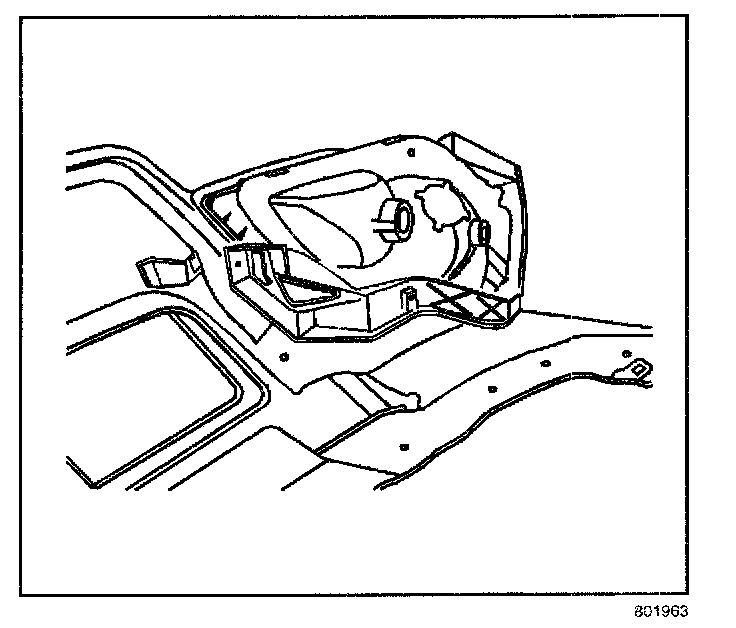

1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Disconnect the electrical harness connectors.

CAUTION: Refer to Halogen Bulb Caution in Service Precautions.

3. Remove the bulbs from the daytime running and fog lamp assembly by turning the bulb 1/4 turn counterclockwise.
4. Remove the fasteners (2) retaining the lamp assembly to the fascia.
5. Remove the lamp assembly from the vehicle.

INSTALLATION PROCEDURE

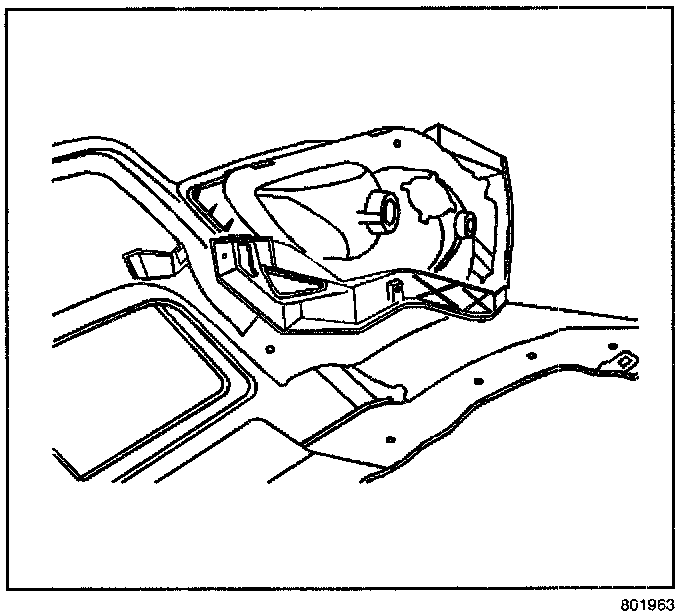

1. Install the lamp assembly to the vehicle.
2. Install the fasteners to the lamp assembly. Tighten the fasteners 1.1 N.m (10 in).
3. Install the bulbs to the daytime running and fog lamp assembly by turning the bulb 1/4 turn clockwise.
4. Connect the electrical harness connectors.
5. Lower the vehicle.
6. Re-aim the fog lamps. Refer to Fog Lamp Aiming Procedure.
