Horn Replacement - Left

REMOVAL PROCEDURE




1. Raise the hood.
2. Remove the battery.
3. Remove the battery tray.
5. Raise and suitably support the vehicle.
6. Disconnect the horn electrical connector.
7. Remove the horn bolt. Reposition the park/turn signal lamp wiring harness for additional clearance.

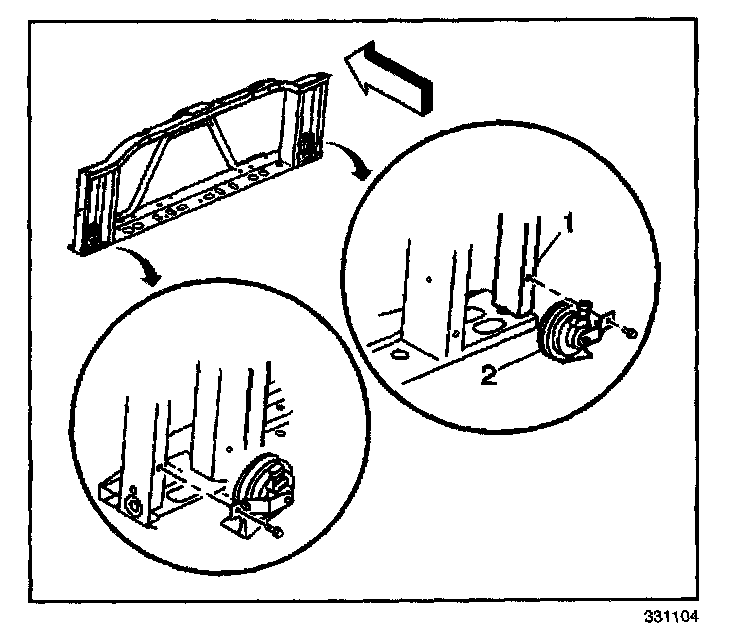

8. Remove the horn (2) from the radiator support (1). Left side and right side assemblies are shown.

INSTALLATION PROCEDURE

IMPORTANT: Ensure that the black side of the horn is facing forward on the vehicle.




1. Install the horn (2) to the radiator support (1). Left side and right side horn assemblies are shown.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the horn bolt.

Tighten
Tighten the horn bolts to 9 N.m (80 lb in).

3. Connect the horn electrical connector.
4. Lower the vehicle.
5. Install the washer reservoir.
6. Install the battery tray.
7. Install the battery.
8. Close the hood.
