Horn Replacement - Right

REMOVAL PROCEDURE




1. Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Disconnect the horn electrical connector.
3. Remove the horn bolt. Reposition the park/turn signal lamp wiring harness for additional clearance.

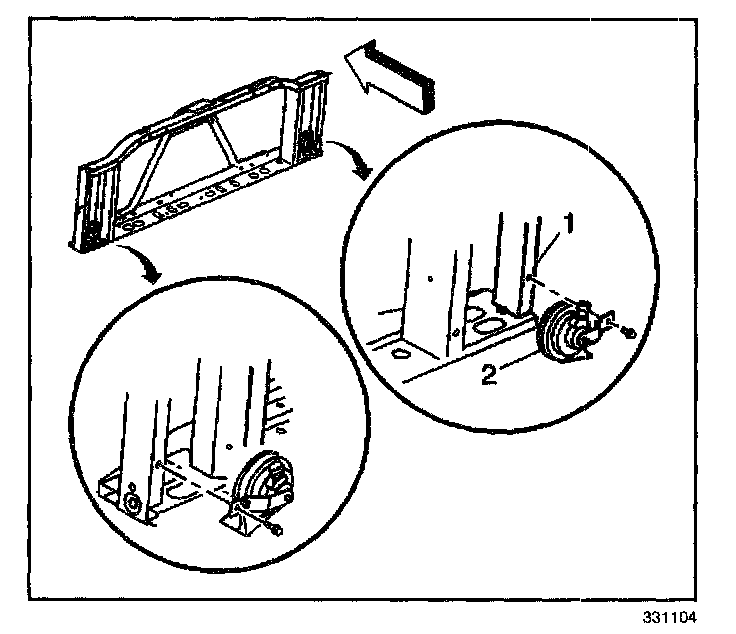

4. Remove the horn (2) from the radiator support (1). Left side and right side horn assemblies are shown.

INSTALLATION PROCEDURE

IMPORTANT: Ensure that the black side of the horn is facing forward on the vehicle.




1. Install the horn (2) to the radiator support (1). Left side and right side horn assemblies are shown.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the horn bolt.

Tighten
Tighten the horn bolts to 9 N.m (80 lb in).

3. Connect the horn electrical connector.
4. Install the park/turn signal lamp assembly.
5. Install the headlamp.
6. Lower the vehicle.
