Chevy Truck
>>
2002
>>
C 3500 HD Truck 2WD V8-6.5L DSL Turbo VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C100 - C149
>>
C114 - Engine Harn Inline to Engine Oil Pres Sensor Jumper Harn
C114 - Engine Harn Inline to Engine Oil Pres Sensor Jumper Harn

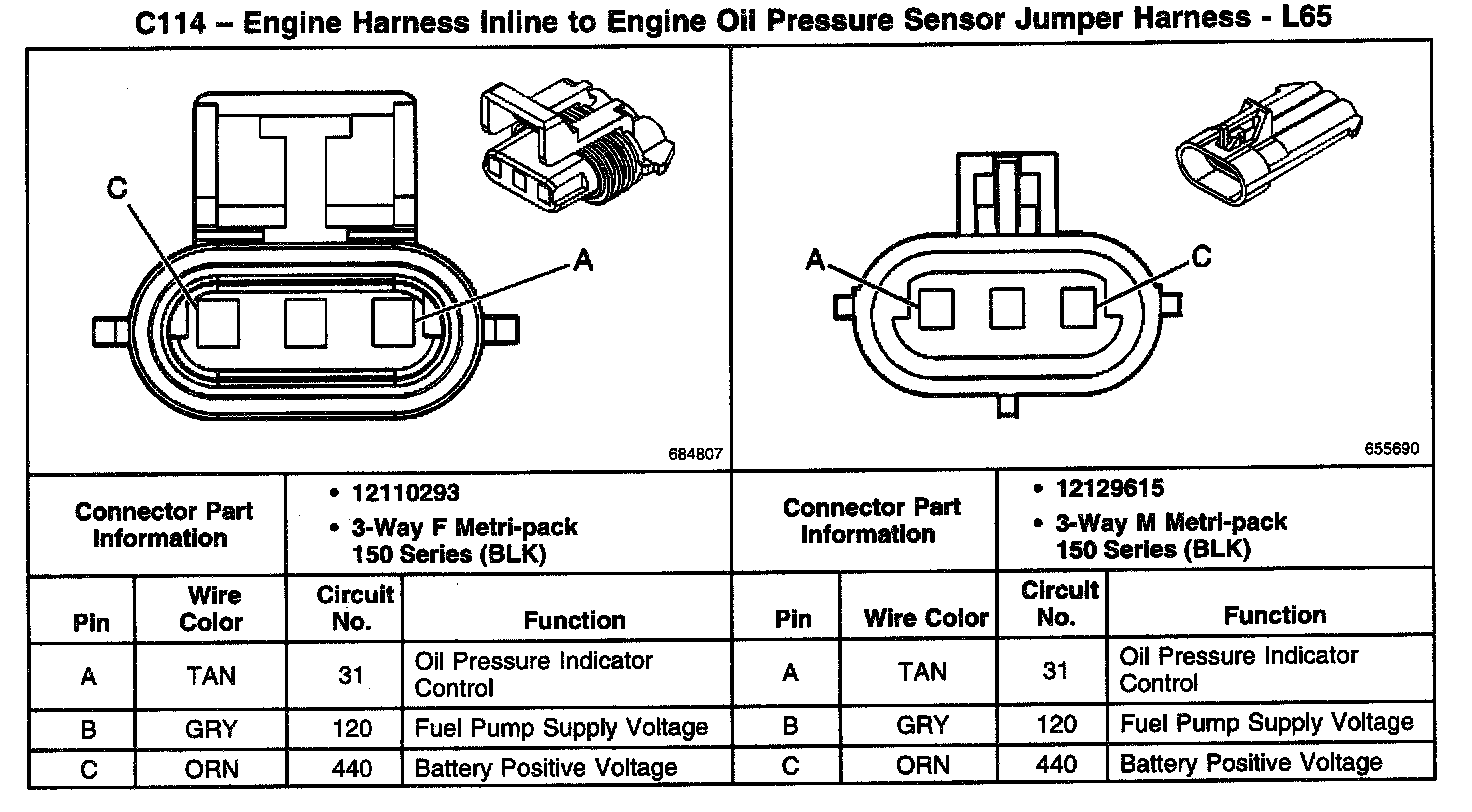

C114 - Engine Harness Inline To Engine Oil Pressure Sensor Jumper Harness - L65:
