C115 - Engine Harness Inline to Generator Harness
C115 - Engine Harness Inline to Generator Harness

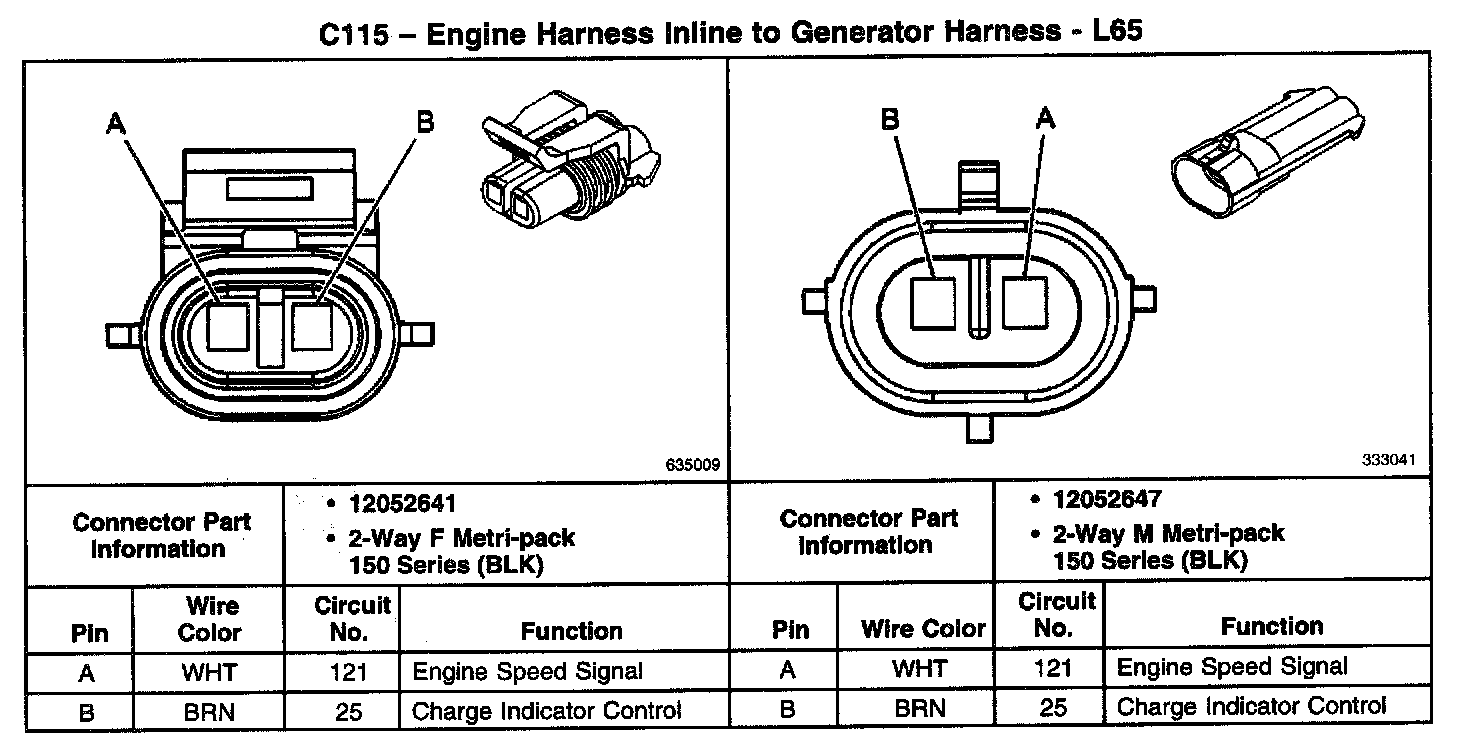

C115 - Engine Harness Inline To Generator Harness - L65:
