Multiple Junction Connector
>>

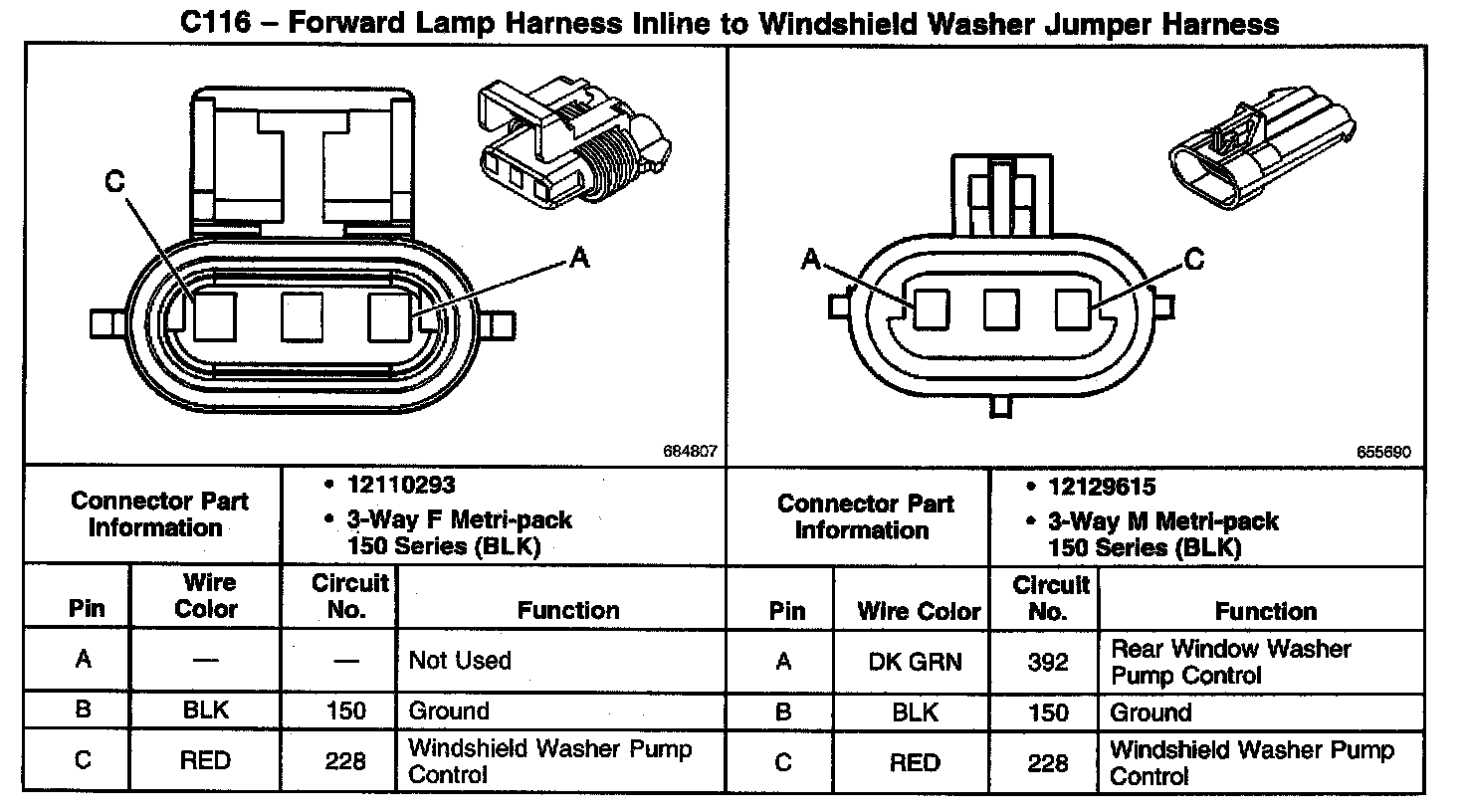

C116 - Forward Lamp Harness Inline to Windshield Washer Jumper Harness
C116 - Forward Lamp Harness Inline to Windshield Washer Jumper Harness
C116 - Forward Lamp Harness Inline To Windshield Washer Jumper Harness:
