C148 - Engine Harness to Ignition Coil Harness - Left Side
C148 - Engine Harness to Ignition Coil Harness - Left Side

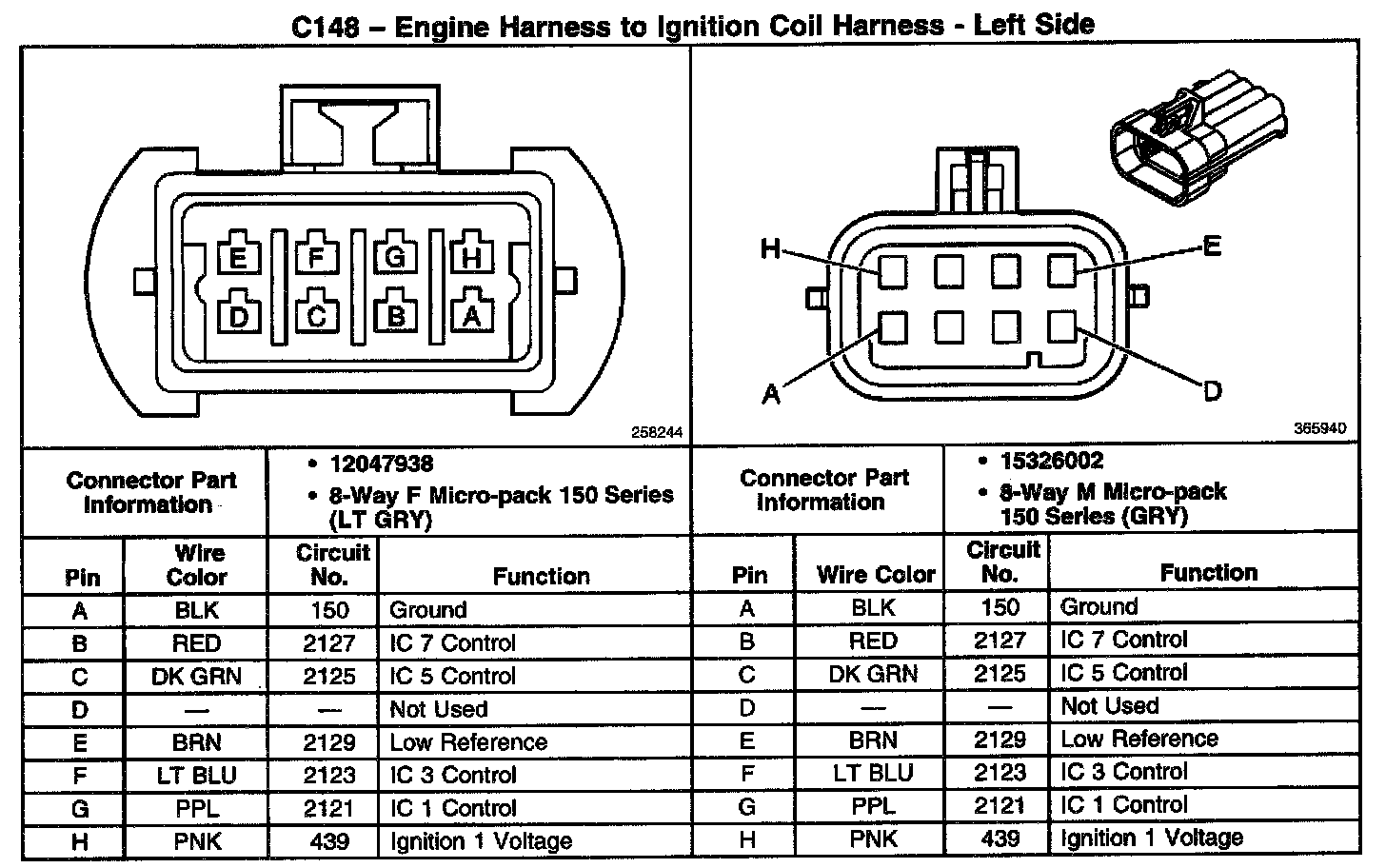

C148 - Engine Harness To Ignition Coil Harness - Left Side:
